Milestone Electronics
Model: ML 108
VGA Multiplier (Splitter) — 1 CPU to 8 VGA Output Distribution System
The ML 108 VGA Multiplier distributes the video output of a single computer or laptop across eight VGA displays simultaneously, delivering uniform signal quality on every connected screen. Designed for continuous-use professional environments with support for transmission distances up to 100 metres per output.
- 1 VGA input to 8 simultaneous VGA outputs with identical signal on each display
- Supports resolution up to 1600x1280 with 250 MHz video bandwidth
- Transmission distance up to 100 metres per output port
- Adjustable gain control for signal optimisation based on cable length
- Daisy chain expansion support for extending the number of displays
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML 108 VGA Multiplier

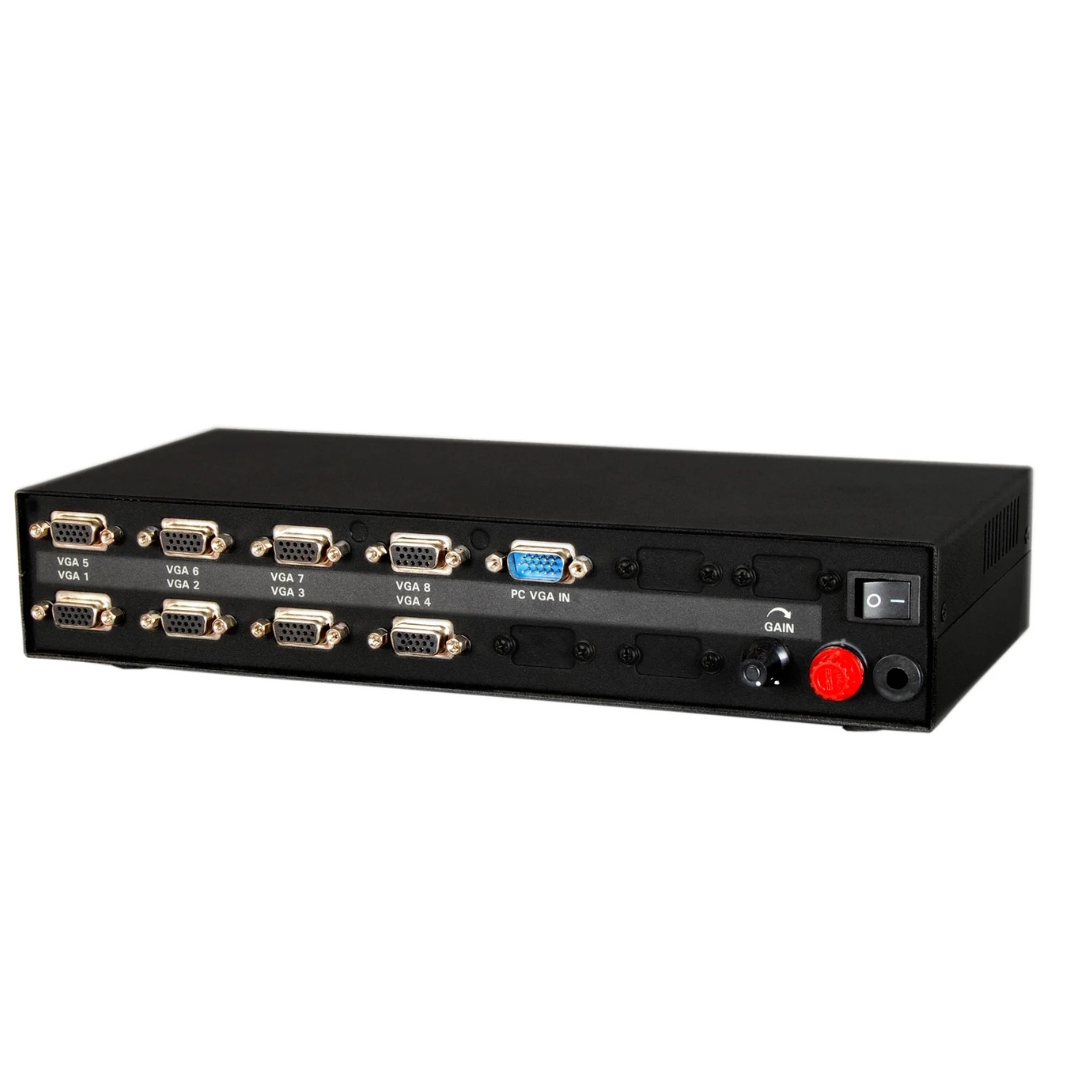

The ML 108 VGA Multiplier features one VGA input port and eight VGA output ports, enabling efficient distribution of video signals from a single source to multiple displays. Each output is designed to deliver consistent signal strength, ensuring uniform display quality across all connected monitors without noticeable degradation.
The device supports a maximum resolution of up to 1600×1280 and operates with a video bandwidth of 250 MHz and a horizontal frequency range of 30 to 100 KHz. This ensures stable, high-quality signal transmission across all eight outputs simultaneously, even in demanding continuous-use environments.
A key feature of the ML 108 is its adjustable gain control, which allows the user to optimise signal strength based on cable length and installation requirements. This ensures consistent brightness and image clarity across all connected displays, including in extended configurations where outputs are distributed over longer cable runs.
The device also supports daisy chain expansion, allowing users to extend the total number of displays beyond eight when required. It is enclosed in a durable metal housing with a power LED indicator, and is fully compatible with VGA, SVGA, and EVGA monitors.
Input Ports
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for multi-display signal distribution
One VGA input. Eight simultaneous outputs. Consistent signal quality across every connected display with up to 100 metres of transmission distance per output.
1x8 VGA Signal Distribution
The ML 108 accepts one VGA input from a computer or laptop and distributes the identical video signal across all eight output ports simultaneously, with no loss in display quality on any connected monitor.
- 1 VGA input port for a single CPU or laptop
- 8 VGA output ports with simultaneous distribution
- Identical signal delivered to each output
Long-Distance Transmission
Each output port supports signal transmission up to 100 metres, making the ML 108 suitable for large installations where displays are positioned at a distance from the central source device.
- Up to 100 metres per output port
- Suitable for large-scale and extended installations
- Signal strength maintained over full cable length
Adjustable Gain Control
The built-in adjustable gain control enables users to optimise signal strength to match the specific cable length and installation layout, ensuring consistent brightness and image clarity on all connected displays, including in extended configurations.
- Adjustable to compensate for cable length variation
- Maintains uniform brightness across all outputs
- Minimises distortion in continuous-use environments
High Resolution and Bandwidth
With support for resolutions up to 1600x1280 and a video bandwidth of 250 MHz, the ML 108 delivers sharp and stable visuals across all connected VGA, SVGA, and EVGA displays.
- Maximum resolution of 1600x1280
- 250 MHz video bandwidth for clear signal transmission
- Compatible with VGA, SVGA, and EVGA monitors
Daisy Chain Expansion
The ML 108 supports daisy chain expansion, allowing additional multiplier units to be connected in series to increase the total number of displays beyond eight when the installation demands it.
- Scalable beyond 8 outputs via daisy chaining
- Suitable for large display networks
- No need for separate signal amplifiers in extended setups
Durable Metal Enclosure

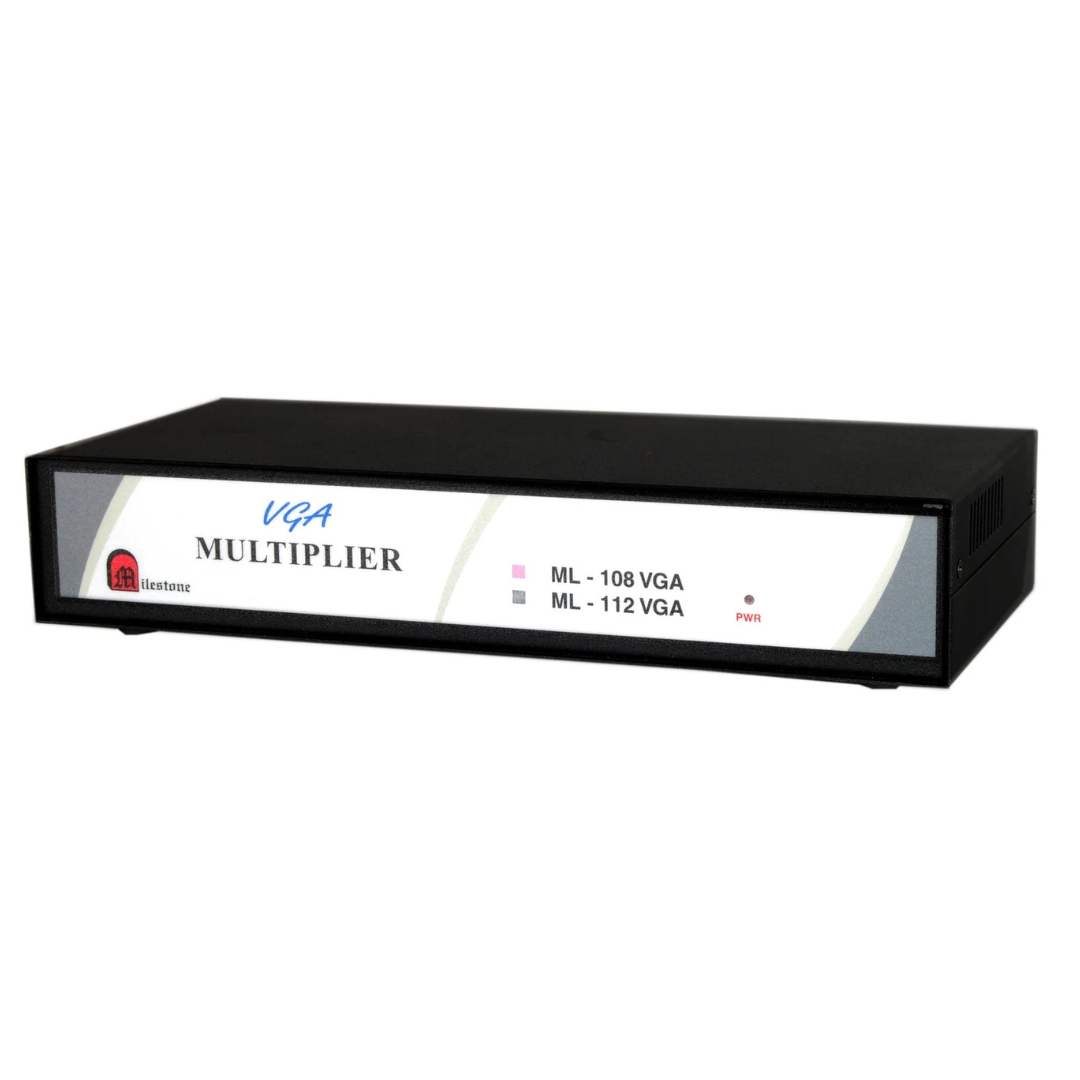

Enclosed in a robust metal housing, the ML 108 is built for reliable, long-term performance in professional environments. A power LED indicator provides instant visual confirmation of operational status.
- Metal enclosure for durability in professional use
- Power LED indicator for operational status
- Designed for continuous and uninterrupted operation
Installation
Plug-and-play setup with optional daisy chain
The ML 108 requires no complex configuration. Connect the source device to the input and attach the displays to the output ports to begin signal distribution instantly. Daisy chaining allows the system to scale beyond eight outputs.
01

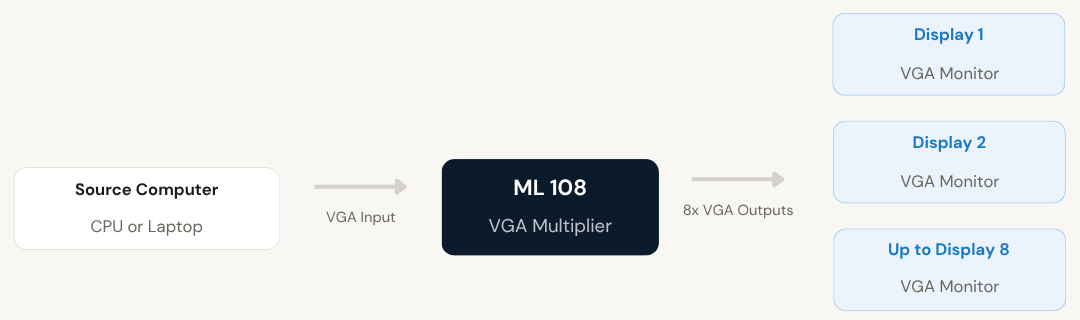

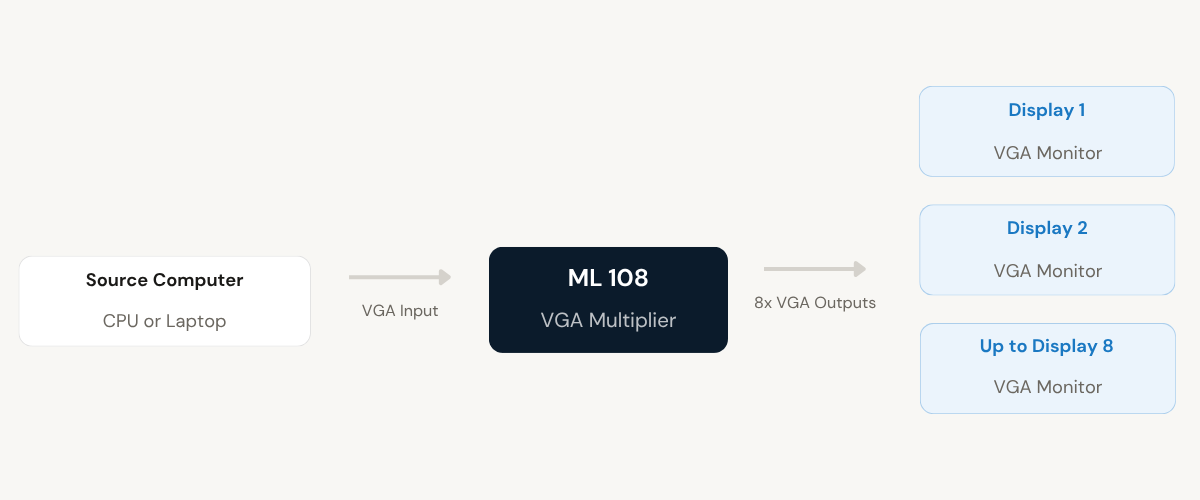

Standard 1-to-8 Setup
Connect one computer or laptop to the single VGA input port. Connect up to eight monitors to the VGA output ports. Power on the unit using the 230V AC supply. Signal distribution to all connected displays begins instantly without any software or driver configuration required.
02

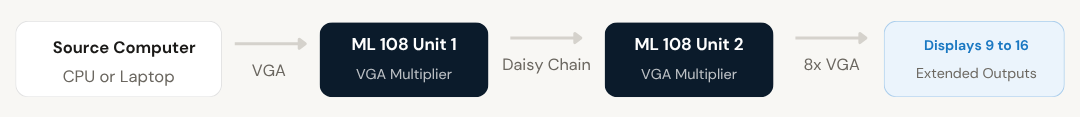

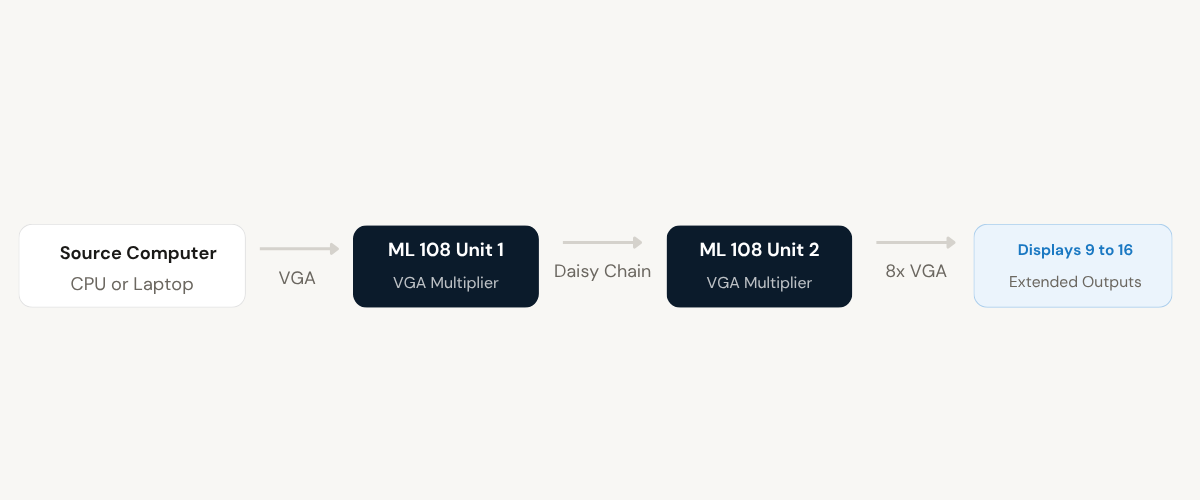

Daisy Chain Expansion
To distribute the signal to more than eight displays, connect a second ML 108 unit in a daisy chain configuration by linking one output of the first unit to the input of the second. This extends the total number of displays in the installation while maintaining signal quality across all outputs. Gain control should be adjusted on each unit based on the cable lengths used.
Where the ML 108 performs
Designed for professional environments that require the same content displayed consistently across multiple VGA screens from a single computer source.
Control Rooms
Display system output across multiple monitoring screens from a single source computer. The ML 108 ensures all operators view the same consistent feed across all screens simultaneously.
Educational Institutions
Share a single computer's display across multiple monitors or projectors in classrooms and computer labs, enabling all students to view the same content clearly from any seat in the room.
Retail and Commercial Displays
Mirror promotional or informational content from one source across multiple screens throughout a retail space or commercial premises, removing the need for individual media players at each display.
AV Installations
Suitable for professional AV setups where a single video source must drive multiple VGA displays, including large venues and event environments where content needs to be distributed over extended distances.
Command and Operations Centres
Deploy across large-format monitoring walls in operations centres where one system output must be visible across multiple screens for continuous oversight and coordination by multiple team members.
Conference and Presentation Rooms
Distribute presentation content from a single laptop or desktop to multiple display screens in large conference halls and meeting rooms, ensuring all attendees have a clear and consistent view of the presented material.
Full specification sheet
- Signal Ports
- Video Performance
- Signal Control
- Compatibility
- Hardware and Power
- Ideal Applications
FAQs about the ML 108 VGA Multiplier
What does the ML 108 VGA Multiplier (Splitter) do?
The ML 108 VGA Multiplier lets you connect one computer or laptop and display the same output on up to 8 screens simultaneously. It distributes the VGA video signal from a single source to multiple monitors without requiring individual computers at each display.
Will all 8 monitors show the same video quality?
Yes. Each output port is designed to maintain consistent signal strength. This ensures all connected screens display the same clear and stable image without noticeable quality loss. The adjustable gain control further allows signal optimisation based on cable length to maintain uniform brightness across all displays.
How far can the VGA signal be extended with this splitter?
The ML 108 supports transmission up to 100 metres per output. This makes it suitable for larger installations where monitors are placed at a distance from the main source device, such as in control rooms or large commercial spaces.
Is the ML 108 VGA splitter easy to install and use?
Yes, it works on a plug-and-play setup. Simply connect your CPU or laptop to the input port and the monitors to the eight output ports. Powering on the unit activates signal distribution instantly without any software installation or complex configuration.
Where is the ML 108 VGA Multiplier commonly used?
It is widely used in control rooms, classrooms, retail displays, and AV installations where the same content needs to be shown across multiple screens efficiently. It is also suitable for command and operations centres and conference rooms requiring content distribution from a single source.
Can the ML 108 support more than 8 displays?
Yes. The ML 108 supports daisy chain expansion, which allows you to connect multiple units in series to increase the total number of displays beyond eight. In a daisy chain configuration, one output port of the first unit is connected to the input of a second unit, extending the distribution network while keeping all outputs driven from the same single source.
What types of monitors are compatible with the ML 108?
The ML 108 is fully compatible with VGA, SVGA, and EVGA monitors, providing wide compatibility with various display systems used in professional and commercial environments. Any VGA-enabled monitor or projector can be connected directly to the output ports.
