VGA Multiplier (Splitter) — 1 CPU to 2 VGA Output Distribution System
The ML 102 VGA Multiplier connects one computer to two VGA displays, distributing an identical video signal to both screens simultaneously. Built for professional AV and workspace installations requiring consistent multi-display output.
- 1 VGA input to 2 VGA output signal distribution
- Supports resolution up to 1600x1280 with 250 MHz video bandwidth
- Transmission distance of up to 100 metres per output
- Adjustable gain control for signal optimisation across cable distances
- Compatible with VGA, SVGA, and EVGA monitors
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview

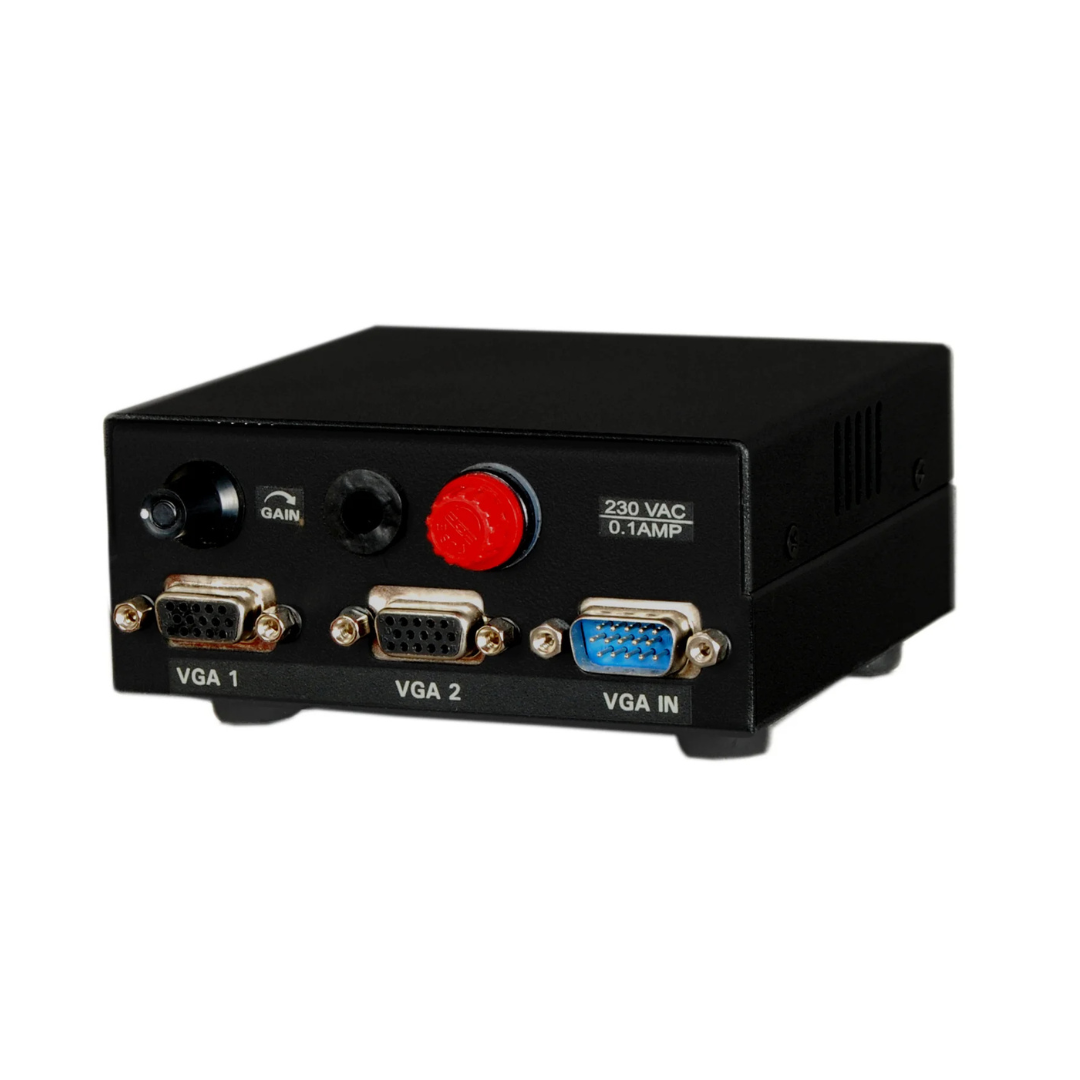

The ML 102 VGA Multiplier
The ML 102 VGA Multiplier features one VGA input port and two VGA output ports, enabling a single computer system to distribute an identical video signal to two monitors simultaneously. It simplifies multi-display setups without requiring additional graphics hardware in the source system.
Each output is engineered to maintain signal strength and clarity, ensuring consistent display quality across both connected screens. The device includes adjustable gain control that allows operators to fine-tune signal output based on cable length and display requirements, helping maintain consistent brightness and clarity even over extended transmission distances.
The ML 102 also supports daisy chain capability, allowing expansion to additional monitors when the installation requires more than two display outputs.
Housed in a durable metal enclosure, the device is built for continuous operation in professional environments. A power LED indicator provides clear operational status visibility during use.
VGA Inputs
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Reliable VGA signal distribution
One input, two outputs. Identical signal on both screens, up to 100 metres per output, with stable transmission across VGA, SVGA, and EVGA monitors.

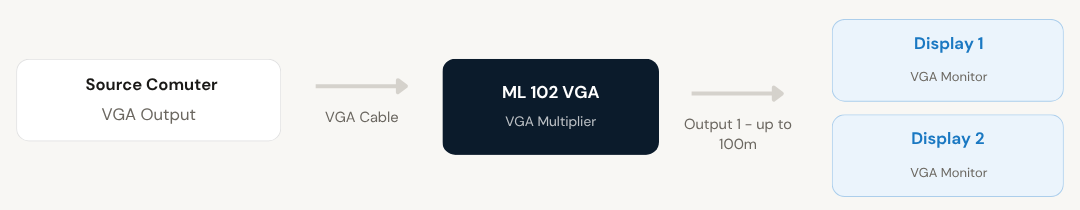

1x2 VGA Signal Distribution
The ML 102 VGA accepts one VGA input from a computer or laptop and distributes the same video signal to two VGA output ports simultaneously, without requiring additional graphics hardware.
- Single VGA input from CPU or laptop
- Two VGA outputs delivering identical content
- Centralised signal distribution from one source
High-Resolution Signal Support
The device supports a maximum resolution of 1600x1280, with a video bandwidth of 250 MHz and a horizontal frequency range of 30 to 100 KHz, ensuring sharp and stable visuals across connected displays.
- Maximum resolution of 1600x1280
- 250 MHz video bandwidth for clear signal
- Horizontal frequency range: 30 to 100 KHz
Long-Distance Transmission
Each output supports VGA signal transmission of up to 100 metres, making the ML 102 VGA suitable for large-scale installations where displays are positioned at a significant distance from the source system.
- Up to 100 metres per output
- Suitable for large rooms and extended AV runs
- Stable signal quality maintained over distance
Adjustable Gain Control
The built-in adjustable gain control allows signal output to be optimised based on cable length and display requirements. This minimises distortion and maintains consistent brightness and clarity across all connected monitors.
- Optimise signal for varying cable lengths
- Maintains consistent brightness across outputs
- Minimises signal distortion in continuous-use environments
Broad Display Compatibility
TheML 102 VGA is fully compatible with VGA, SVGA, and EVGA monitors, providing broad usability across different display systems commonly found in professional and commercial environments.
- Compatible with VGA, SVGA, and EVGA displays
- Works with standard VGA output CPUs and laptops
Daisy Chain Expansion
The device supports daisy chain capability, allowing the system to be expanded to additional monitors when the installation requires output to more than two displays from a single source.
- Supports daisy chaining for additional monitor outputs
- Scalable for growing multi-display requirements
Installation

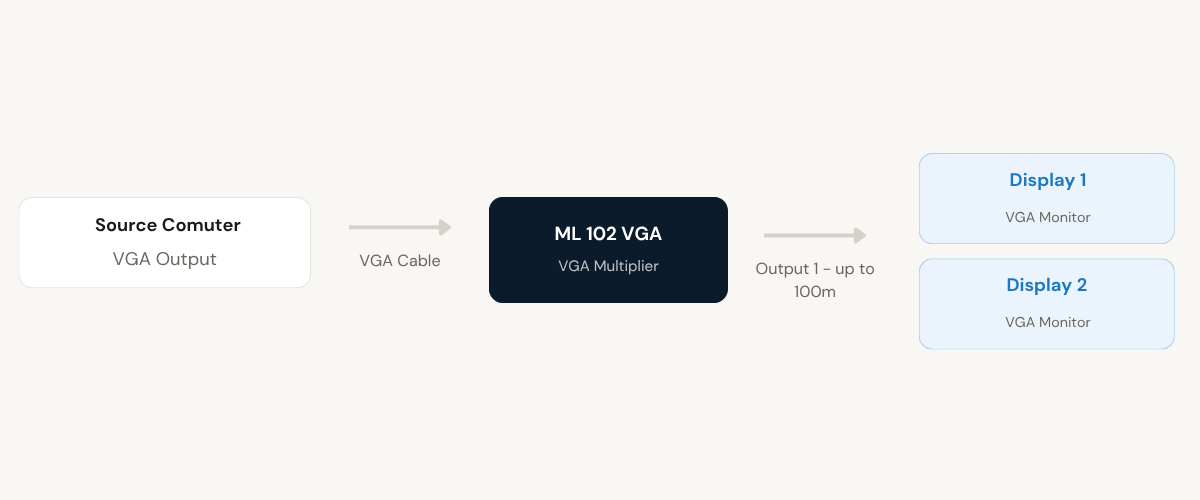

Plug-and-play setup in two steps
The ML 102 VGA requires no technical configuration. Connect the CPU to the input and the monitors to the outputs, then power on the device to begin signal distribution immediately.
01
Connect Source and Displays
Connect the computer or laptop's VGA output to the single VGA input port on the ML 102 VGA. Then connect up to two VGA monitors to the two output ports. The device does not require any driver installation or software configuration. Once connections are in place, the unit is ready to operate.
02
Power On and Operate
Connect the 230V AC power supply to the device and power it on. The power LED indicator will illuminate to confirm active operation. Signal distribution to both outputs begins instantly, with no delay or manual switching required. Adjust the gain control if needed to optimise signal quality based on cable length.
Where the ML 102 VGA performs
Suited for professional environments requiring reliable and synchronized distribution of composite audio and video signals from a single source to multiple outputs.
Control Rooms
Display the same system output across multiple monitoring screens within a centralised control environment. The ML 102 ensures both operators and supervisors view identical real-time information simultaneously.
Educational Institutions
Allow instructors to share computer output across multiple classroom displays. Students at different positions in the room receive the same clear visual content from one source without additional hardware.
Retail and Commercial Displays
Mirror promotional content, product information, or pricing across multiple screens in a retail environment. Both displays receive the same signal from a single playback source, simplifying content management.
AV Installations
Ideal for setups requiring multiple VGA monitor outputs from a single system. Suitable for presentations, event AV setups, and permanent installations where signal consistency across screens is essential.
Corporate Boardrooms
Distribute presentation output from a single laptop or desktop to two display screens in conference or boardroom settings. Eliminates the need for additional graphics hardware or separate playback systems.
Public Information Displays
Deploy the ML 102 in transportation hubs, waiting areas, or public spaces where the same information screen must appear on two displays from a centralised computer, without duplication of hardware.
Full specification sheet
- Signal Interface
- Video Performance
- Signal Transmission
- Physical and Power
- Suitable Environments
FAQs about the ML 102
What does the ML 102 VGA Multiplier (Splitter) do?
The ML 102 VGA Multiplier allows you to connect one computer and display the same content on two screens. It distributes the VGA signal from a single source to two output ports simultaneously, creating a dual-display setup without requiring additional graphics hardware.
Will both screens show the same video quality?
Yes, both outputs are designed to maintain consistent signal strength. The device includes adjustable gain control to help maintain consistent brightness and clarity across all connected monitors. Both displays receive identical video signals without any noticeable quality drop.
How far can the VGA signal be transmitted using this splitter?
The ML 102 VGA supports transmission up to 100 metres per output. This makes it suitable for setups where displays are placed at a considerable distance from the main system, such as in large halls, classrooms, or control room environments.
Is the ML 102 VGA splitter easy to install and use?
Yes, it operates on a plug-and-play setup. You connect your CPU to the input port and the monitors to the output ports, then power on the device. Signal distribution begins instantly without any technical configuration or software installation required.
Where is the ML 102 VGA Multiplier commonly used?
The ML 102 VGA is commonly used in classrooms, control rooms, retail displays, and AV setups where the same content needs to be shown on multiple screens from a single source efficiently and without additional hardware.
Can the ML 102 VGA be expanded to support more than two monitors?
Yes. The ML 102 VGA supports daisy chain capability, which allows the system to be expanded to additional monitors beyond the initial two outputs. This enables scalable multi-display installations when the setup requires more screens from a single source.
What monitor types is the ML 102 VGA compatible with?
The ML 102 VGA is fully compatible with VGA, SVGA, and EVGA monitors, ensuring broad usability across the range of display systems typically found in professional and commercial environments. It is also compatible with standard VGA output CPUs and laptops.
