VGA Series
VGA Multiplier (Splitter) — 1 CPU to 16 VGA Output Rack Mount Distribution System
The ML 116 VGA (RM) distributes one computer’s VGA output to up to 16 displays simultaneously. Housed in a 2U rack-mount metal enclosure, it delivers consistent signal quality across all connected monitors with support for resolutions up to 1600×1280.
- 1 VGA input distributed to 16 VGA outputs simultaneously
- Supports resolution up to 1600x1280 with 250 MHz video bandwidth
- Signal transmission up to 100 metres per output
- Adjustable gain control for signal optimisation across all outputs
- 2U rack-mount metal enclosure with plug-and-play operation
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
1x16 VGA Signal Distribution for Professional Environments
The ML 116 VGA (RM) Multiplier features one VGA input and sixteen VGA output ports, enabling efficient distribution of video signals from a single computer or laptop source to multiple displays. Each output is engineered to maintain consistent signal strength and display quality, ensuring uniform visuals across all connected monitors.
The device supports a maximum resolution of up to 1600×1280 with a video bandwidth of 250 MHz and a horizontal frequency range of 30 to 100 KHz. These specifications ensure stable and high-quality signal transmission for demanding professional installations.
Adjustable gain control allows the signal output to be optimised based on cable length and specific installation requirements. This ensures consistent brightness and clarity across all connected displays, even in long-distance configurations of up to 100 metres per output.
The rack-mount design integrates seamlessly into structured AV systems and equipment racks. Housed in a durable metal enclosure in a 2U format, the device is compatible with VGA, SVGA, and EVGA monitors, providing flexibility across different display environments.
Input
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Reliable 1-to-16 VGA signal distribution
One input. Sixteen outputs. Consistent signal quality up to 100 metres per display, in a rack-mount form factor built for continuous operation
1x16 VGA Signal Distribution

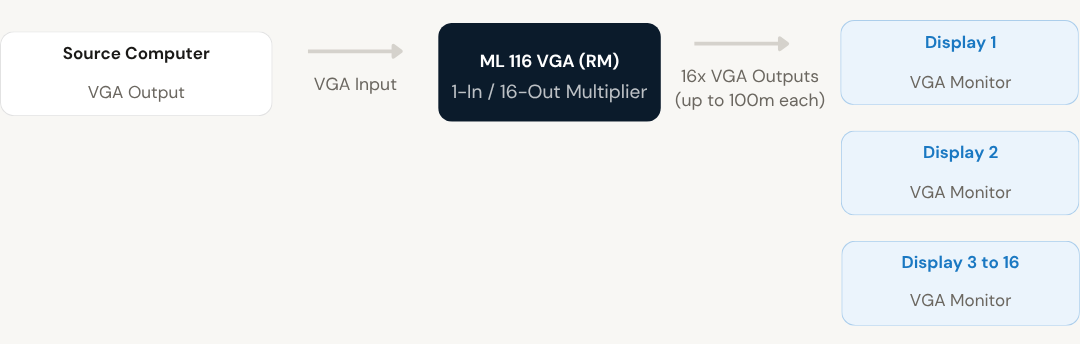

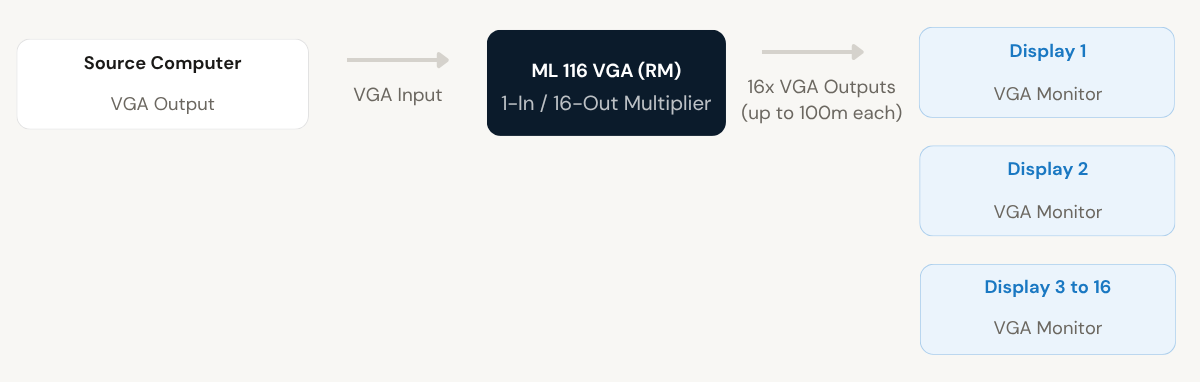

The device connects a single computer or laptop to sixteen VGA displays simultaneously, distributing identical video signals to all outputs without requiring multiple source systems.
- One VGA input port for a single CPU or laptop
- Sixteen VGA output ports for simultaneous multi-screen output
- Identical video signal delivered to each connected monitor
High-Resolution Signal Support
The ML 116 VGA (RM) supports resolutions up to 1600x1280 with a 250 MHz video bandwidth, delivering clear and sharp visuals across all sixteen connected displays.
- Maximum resolution of 1600x1280
- 250 MHz video bandwidth
- Horizontal frequency range of 30 to 100 KHz
Extended Transmission Distance
Each output supports signal transmission up to 100 metres, making the device suitable for large-scale installations where screens are positioned at significant distances from the source system.
- Up to 100 metres transmission distance per output
- Suitable for large control rooms and extended screen layouts
- Stable signal delivery over long cable runs
Adjustable Gain Control
Built-in adjustable gain control allows the output signal level to be set according to cable length and installation requirements, maintaining consistent brightness and image clarity at all connected displays.
- Compensates for signal loss over longer cable runs
- Ensures uniform brightness across all sixteen outputs
- Minimises distortion during continuous operation
Rack-Mount Metal Enclosure
The 2U rack-mount format allows the device to be integrated directly into standard AV equipment racks. The durable metal enclosure is built for continuous professional use, with a power LED indicator for operational status visibility.
- 2U rack-mount format for structured AV rack integration
- Durable metal enclosure for professional installations
- Power LED indicator for status monitoring
Broad Monitor Compatibility
The ML 116 VGA (RM) is fully compatible with VGA, SVGA, and EVGA monitors, ensuring it can be deployed across diverse display environments without compatibility concerns.
- Compatible with VGA, SVGA, and EVGA monitors
- Plug-and-play setup with no complex configuration required
- 230V AC power supply for standard installations
Simple plug-and-play setup
The ML 116 VGA (RM) is designed for straightforward installation into rack-based AV systems. No complex configuration is required to begin signal distribution.
01
Rack Mounting
Mount the ML 116 VGA (RM) into a standard equipment rack using the 2U rack-mount form factor. Secure the unit within the rack enclosure to ensure stable positioning. The metal enclosure is designed to integrate cleanly alongside other AV and IT rack equipment.
02
Signal Connection and Power
Connect the source computer or laptop to the single VGA input port. Connect up to sixteen VGA monitors or display devices to the output ports. Power the unit using the 230V AC supply. Once powered on, the device begins distributing the video signal to all connected displays immediately, with the power LED confirming operational status.
Where the ML 116 VGA (RM) performs
Designed for professional environments requiring centralised VGA signal distribution to multiple displays from a single source.
Control Rooms
Distribute a single system output across multiple monitoring screens for real-time operations. The ML 116 VGA (RM) ensures all operator stations display the same high-quality video feed simultaneously.
Broadcast and AV Systems
Manage and display content from a single source across multiple screens in professional broadcast and AV environments. Consistent signal quality across all outputs supports reliable on-air and production workflows.
Educational Institutions
Share a computer's output across multiple displays or projectors in large classrooms, lecture halls, or computer labs. Enables instructors to present content to all students from a single connected system.
Commercial Display Installations
Ideal for large-scale display setups in retail, hospitality, or corporate environments requiring centralised signal distribution from one source to numerous screens across a facility.
Data Centres and Server Rooms
Distribute server or system console output to multiple monitoring stations within a data centre environment. Rack-mount design ensures clean integration alongside existing server and network infrastructure.
24x7 Monitoring Environments
The device is built for reliable continuous operation, making it suitable for security monitoring centres, transportation control facilities, and utility operations rooms where uninterrupted multi-screen display is required.
Full specification sheet
- Signal Interface
- Video Performance
- Signal Management
- Physical and Power
- Operation
FAQs about the ML 116 VGA (RM)
What does the ML 116 VGA Multiplier (Splitter) do?
The ML 116 VGA Multiplier takes one computer’s VGA output and distributes it across up to 16 displays simultaneously. It allows the same content to be shown on multiple screens at the same time without needing separate source systems for each display.
Will all 16 screens show the same quality output?
Yes. The device is engineered to maintain consistent signal strength across all outputs. Each of the 16 connected screens receives an identical signal, ensuring uniform brightness and image clarity without noticeable quality loss across the installation.
How far can the VGA signal be transmitted using this splitter?
The ML 116 VGA (RM) supports signal transmission up to 100 metres per output. This makes it suitable for large setups where screens are placed at a considerable distance from the main source system, such as in control rooms or extended display environments.
Is the ML 116 VGA splitter easy to install?
Yes. The device follows a plug-and-play setup. Simply connect your CPU or laptop to the VGA input port and connect the display monitors to the 16 output ports. Once powered on via the 230V AC supply, the device begins distributing the video signal immediately without requiring any complex configuration.
Where is the ML 116 VGA Multiplier commonly used?
It is commonly used in control rooms, educational institutions, broadcast setups, and commercial environments where the same content needs to be displayed across multiple screens efficiently from a single source system.
What is adjustable gain control and why does it matter?
Adjustable gain control allows the output signal level to be tuned according to the cable length used in the installation. In longer cable runs, signal strength can naturally diminish, which may affect brightness or image clarity. By adjusting the gain, the device compensates for this, maintaining consistent display quality across all 16 outputs regardless of the distance involved.
What types of monitors are compatible with this device?
The ML 116 VGA (RM) is fully compatible with VGA, SVGA, and EVGA monitors. This broad compatibility ensures it can be deployed in mixed display environments without requiring specific monitor types, making it a flexible solution for professional AV installations.
