Milestone Electronics
Model: ML 104
VGA Multiplier (Splitter) – 1 CPU to 4 VGA Output Distribution System
The ML 104 distributes a single VGA source to four displays simultaneously, maintaining consistent signal quality across all outputs. Designed for professional multi-display installations requiring stable and clear video distribution.
- Connects one CPU or laptop to up to four VGA displays simultaneously
- Supports resolutions up to 1600x1280 with a 250 MHz video bandwidth
- Transmission distance of up to 100 metres per output
- Adjustable gain control for signal optimisation based on cable length
- Compatible with VGA, SVGA, and EVGA monitors
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML 104 VGA Multiplier

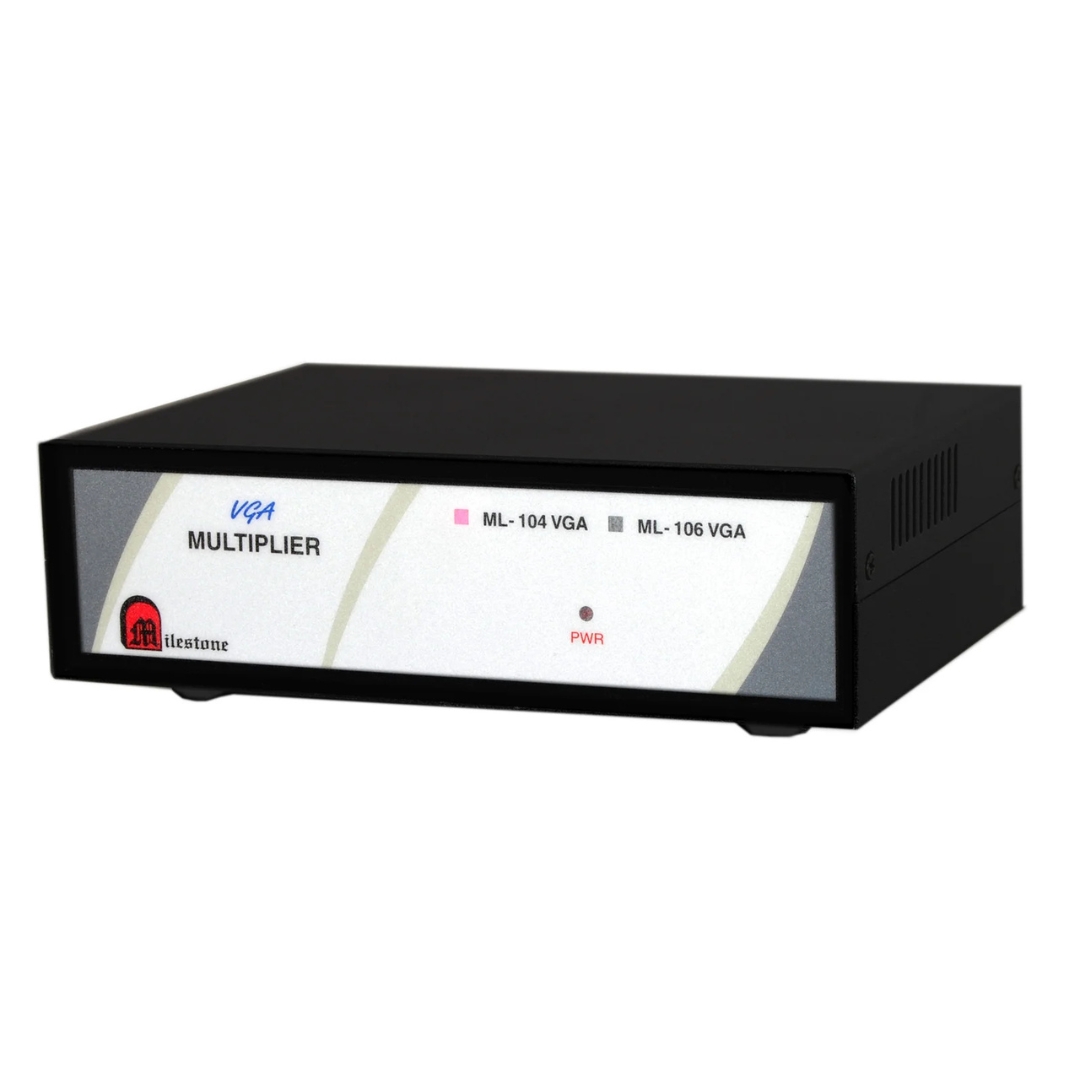

The ML 104 VGA Multiplier features one VGA input and four VGA output ports, enabling a single source system to distribute video signals to multiple displays at the same time. Each output replicates the input signal identically, ensuring uniform display quality without signal degradation across all connected monitors.
The device includes adjustable gain control, allowing the output signal to be tuned based on cable length and installation conditions. This ensures consistent brightness and clarity across all connected screens, even in extended setups where displays are placed at significant distances from the source.
With a video bandwidth of 250 MHz and a horizontal frequency range of 30 to 100 KHz, the ML 104 supports resolutions up to 1600×1280 and provides stable, high-quality signal transmission. Each output supports cable runs of up to 100 metres, making it suitable for large-scale installations such as command centres, lecture halls, and commercial display environments.
The unit also supports expansion through daisy chain connectivity, allowing additional monitors to be connected when a setup requires more than four outputs. Housed in a durable metal enclosure, the ML 104 is built for continuous professional use and includes a power LED indicator for clear operational status visibility.
VGA Input
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Engineered for reliable multi-display distribution
One VGA input. Four simultaneous outputs. Stable signal quality at distances up to 100 metres per port.
1x4 VGA Signal Distribution
A single VGA input port connects directly to a source computer or laptop, distributing identical video signals to four VGA output ports at the same time. Signal quality is maintained uniformly across all connected displays without degradation.
- One VGA input, four simultaneous VGA outputs
- Compatible with standard VGA output devices
- Identical signal replicated to each output
High-Resolution Video Support
The ML 104 supports a maximum resolution of 1600x1280, delivering sharp and detailed visuals across all connected screens. A 250 MHz video bandwidth and a horizontal frequency range of 30 to 100 KHz ensure stable and high-quality signal transmission.
- Maximum resolution: 1600x1280
- Video bandwidth: 250 MHz
- Horizontal frequency: 30 to 100 KHz
Long-Distance Signal Transmission
Each output port supports transmission distances of up to 100 metres, making the ML 104 suitable for large-scale installations where displays are positioned far from the source system.
- Up to 100 metres per output port
- Suitable for large rooms and commercial installations
- Consistent signal integrity across cable length
Adjustable Gain Control
Built-in adjustable gain control allows the signal output to be optimised based on the cable length and installation requirements. This ensures consistent brightness and image clarity across all monitors even in extended setups.
- Gain adjustable to match cable run length
- Minimises signal distortion in extended configurations
- Reliable performance in continuous-use environments
Daisy Chain Expansion
The ML 104 supports daisy chain connectivity, enabling additional monitors to be connected in series when an installation requires output to more than four displays. This allows scalable multi-display configurations without replacing the base unit.
- Daisy chain connectivity supported
- Scalable for installations exceeding four displays
- No core unit replacement required for expansion
Durable Build and Compatibility
Housed in a metal enclosure for long-term reliability, the device is fully compatible with VGA, SVGA, and EVGA monitor types. A power LED indicator provides clear operational status at a glance.
- Compatible with VGA, SVGA, and EVGA displays
- Metal enclosure for professional-grade durability
- Power LED indicator for operational visibility
Installation
Plug-and-play setup with optional daisy chain expansion
The ML 104 is designed for straightforward installation with no complex configuration required. Connect the source and outputs, power on the unit, and signal distribution begins immediately.
01
Basic 1 to 4 Setup
Connect the VGA output of the source computer or laptop to the single VGA input port on the ML 104. Attach up to four VGA monitors to the output ports. Power on the device using the 230V AC supply. Signal distribution activates immediately with no software or driver installation required. Each output delivers the same video signal from the source.
02

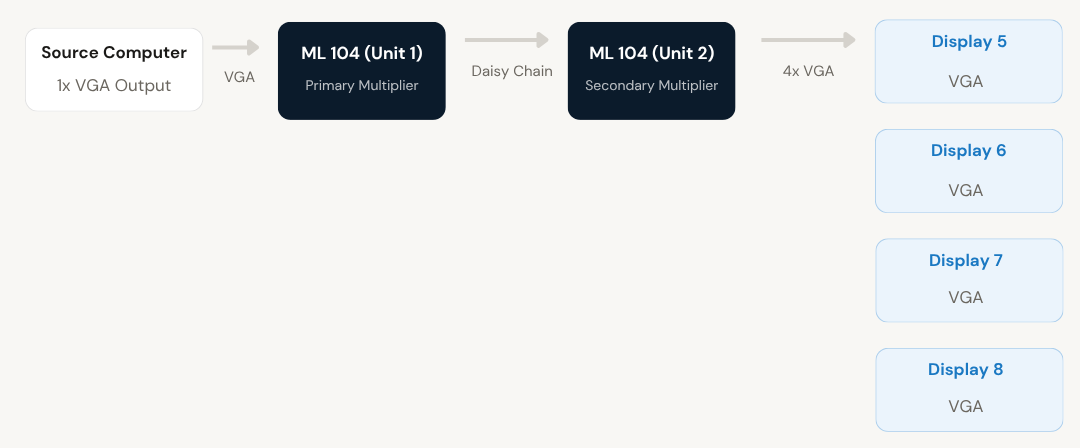

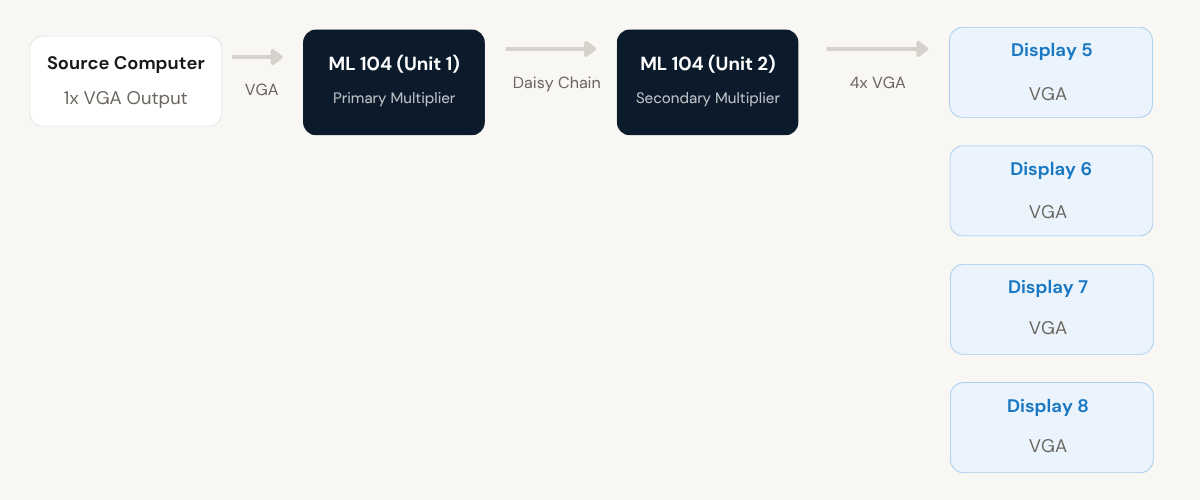

Daisy Chain for Expanded Outputs
For installations requiring more than four display outputs, additional ML 104 units can be connected in a daisy chain configuration. The output of the primary unit connects to the input of a secondary unit, extending signal distribution beyond four monitors. Adjust gain control on each unit to maintain signal quality across longer cable runs and expanded display counts.
Where the ML 104 VGA Multiplier performs
Designed for environments where the same video content must be displayed reliably across multiple screens from a single source, without signal loss over distance.
Control Rooms
Display system output across multiple monitoring screens simultaneously for improved operator visibility and situational awareness. Signal stability at distances up to 100 metres per output ensures coverage across large control room layouts.
Educational Institutions
Distribute a single computer or laptop output to multiple classroom displays or projectors, allowing all students clear visibility of the same content without additional source systems.
Retail and Commercial Displays
Mirror promotional or informational content across multiple screens in a retail environment from a single playback source, ensuring consistent messaging throughout the space.
AV Installations
Integrate the ML 104 into professional AV setups where multiple monitor outputs from a single source system are required. Suitable for presentation suites, conference venues, and broadcast support environments.
Corporate Boardrooms and Presentation Rooms
Distribute laptop or PC output to multiple screens within a meeting room or boardroom simultaneously, enabling all participants clear, identical views of presented content from their seating position.
Industrial Process Monitoring
Feed a single industrial computer or SCADA system output to multiple display terminals across a facility floor. The metal enclosure and stable signal performance make the ML 104 suitable for demanding industrial environments.
Full specification sheet
- Video Specifications
- Ports and Connectivity
- Signal Performance
- Power and Build
- Recommended Applications
FAQs about the ML 104 VGA Multiplier
What does the ML 104 VGA Multiplier (Splitter) do?
The ML 104 VGA Multiplier connects one computer or laptop and distributes the same video output to up to four VGA displays simultaneously. It provides a straightforward way to share a single source signal across multiple monitors without requiring additional source systems.
Will all 4 displays show the same video quality?
Yes. Each output is designed to maintain consistent signal strength. The device replicates the input signal identically to all four outputs, ensuring all connected screens show a clear and stable image without noticeable quality loss between ports.
How far can the VGA signal be extended using this splitter?
The ML 104 supports transmission distances of up to 100 metres per output. This makes it suitable for larger setups where displays are placed far from the main source system, such as in large classrooms, control rooms, or commercial spaces.
Is the ML 104 VGA splitter easy to install?
Yes. The ML 104 follows a plug-and-play setup. Connect the CPU or laptop to the input port and the monitors to the output ports, then power on the unit using the 230V AC supply. Signal distribution begins instantly without any drivers or software configuration.
Where is the ML 104 VGA Multiplier commonly used?
The ML 104 is commonly used in classrooms, control rooms, retail display environments, and professional AV installations where the same content needs to be shown across multiple screens simultaneously from a single source system.
Can the ML 104 support more than four displays?
Yes. The ML 104 supports daisy chain connectivity, allowing additional units to be connected in series to extend the number of output displays beyond four. This enables scalable multi-display setups without replacing the primary unit. Adjusting the gain control on each unit helps maintain signal quality across expanded configurations.
What type of monitors is the ML 104 compatible with?
The ML 104 is fully compatible with VGA, SVGA, and EVGA monitors, providing flexibility across different display systems typically found in professional and institutional environments. It connects to any standard VGA output device on the source side.
