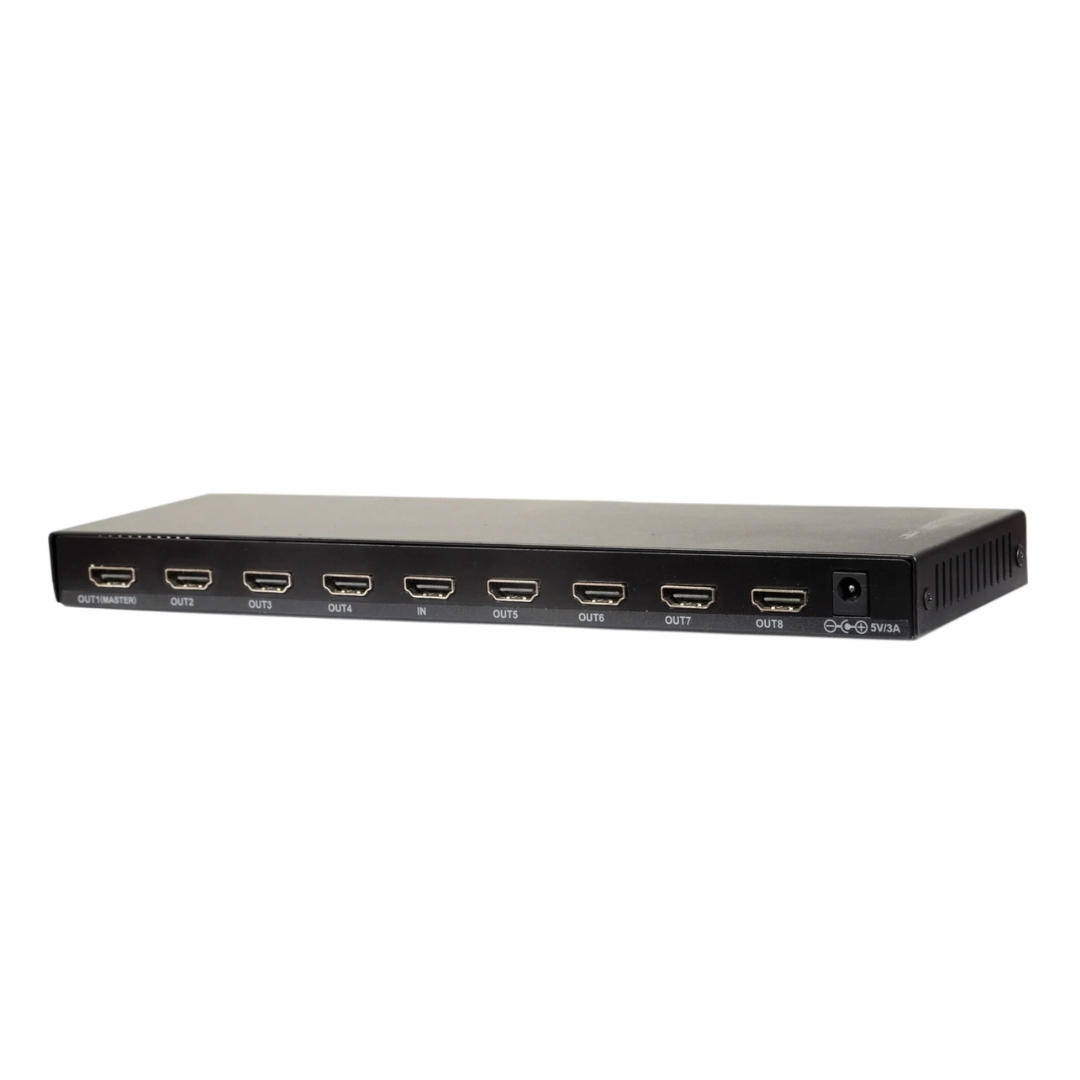

Model: ML-108 HDMI-4K
1 In 8 Out HDMI Splitter (4K@60Hz)
Distributes a single HDMI source to eight displays simultaneously with full 4K at 60Hz resolution. Designed for commercial AV environments requiring synchronized, stable multi-display output without signal loss.

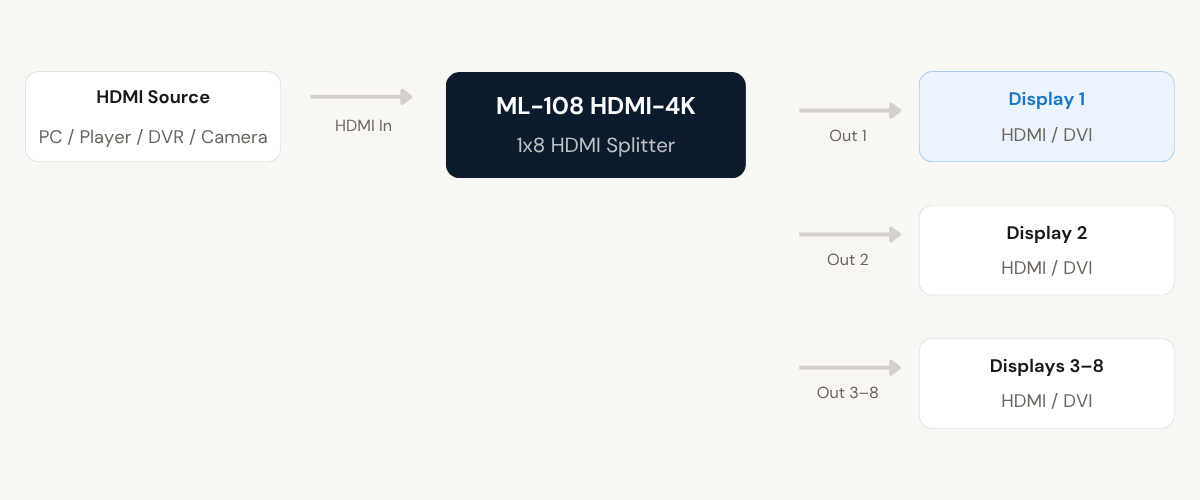

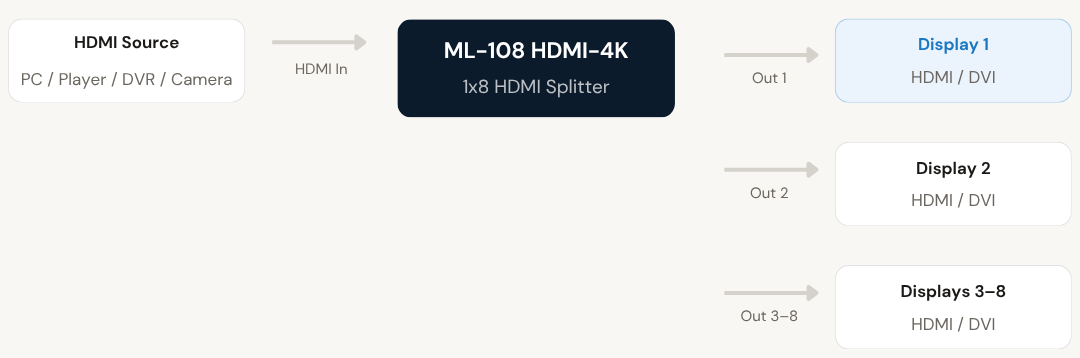

- Distributes one HDMI input to eight HDMI outputs simultaneously
- Supports 4K @60Hz (4:2:0) resolution across all connected outputs
- Built-in signal equalization and re-clocking for stable transmission
- HDCP 1.4 compliant for protected content compatibility
- Plug-and-play installation with no drivers or software required
Inputs
8x HDMI
Max Resolution
4K@60Hz 4:4:4
Bandwidth
18Gbps
Audio Out
Analog + SPDIF
ARC Support
Yes
RS232
Yes
HDCP
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML-108 HDMI-4K
The ML-108 HDMI-4K is a professional 1×8 HDMI splitter that enables simultaneous distribution of a single HDMI source, such as a computer, media player, DVR, or camera, to eight HDMI-enabled displays. It is built for commercial AV environments where consistent and synchronized content must be shown across multiple screens without signal loss or quality compromise.
The device incorporates signal equalization and re-clocking technology to stabilize the HDMI signal across all connected outputs. This ensures consistent image quality and reduces transmission errors, making it particularly suitable for multi-display installations where signal integrity is critical across every output port.
With support for 4K at 60Hz (4:2:0) resolution and HDCP 1.4 compliance, the splitter is compatible with both standard and protected content sources commonly deployed in professional AV infrastructure. It is also compatible with DVI displays using appropriate HDMI-to-DVI adapters, providing flexibility in mixed-format environments.
Front-panel LED indicators provide visibility into power status and active output connections, assisting during installation and simplifying troubleshooting in the field. The compact tabletop form factor supports deployment across a range of physical installation environments.
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for professional multi-display environments
One HDMI source distributed to eight outputs simultaneously, with 4K resolution, signal stabilization, and HDCP compliance across every connected display.
4K@60Hz Resolution Support
The splitter supports Ultra HD resolution up to 4Kx2K at 60Hz (4:2:0), delivering sharp and detailed video across all eight connected displays without downscaling or quality compromise.
- Ultra HD 4Kx2K@60Hz (4:2:0)
- Consistent resolution across all outputs
- Suitable for high-definition display deployments
1x8 HDMI Distribution
A single HDMI input is distributed to eight HDMI outputs simultaneously, enabling synchronized display across multiple screens from one source device. Suitable for commercial and institutional multi-screen setups.
- One input to eight outputs
- Synchronized content across all displays
- Supports computers, media players, DVRs, cameras
Signal Equalization and Re-clocking
Built-in equalization and re-clocking technology stabilizes the HDMI signal across all outputs, reducing transmission errors and maintaining display consistency in demanding multi-display installations.
- Signal equalization on all outputs
- Re-clocking eliminates timing jitter
- Reliable performance in critical installations
HDCP 1.4 Compliance
The device complies with HDCP 1.4 standards, ensuring full compatibility with copy-protected content sources commonly used in professional AV deployments such as Blu-ray players and broadcast systems.
- HDCP 1.4 certified
- Compatible with protected content sources
- Suitable for broadcast and media applications
HDTV and DVI Compatibility
Works with HDMI-enabled HDTVs, monitors, and projectors. Can interface with DVI displays using appropriate HDMI-to-DVI adapters, providing flexibility in mixed-format AV infrastructure.
- Compatible with HDMI-enabled displays
- DVI support via adapter
- Flexible across mixed display environments
LED Status Indication
Front-panel LED indicators provide real-time visibility of power status and active output connections, assisting AV technicians during installation verification and simplifying fault isolation during troubleshooting.
- Power status LED
- Per-output connection indicators
- Aids installation and fault diagnostics
Installation
Simple setup. No software required.

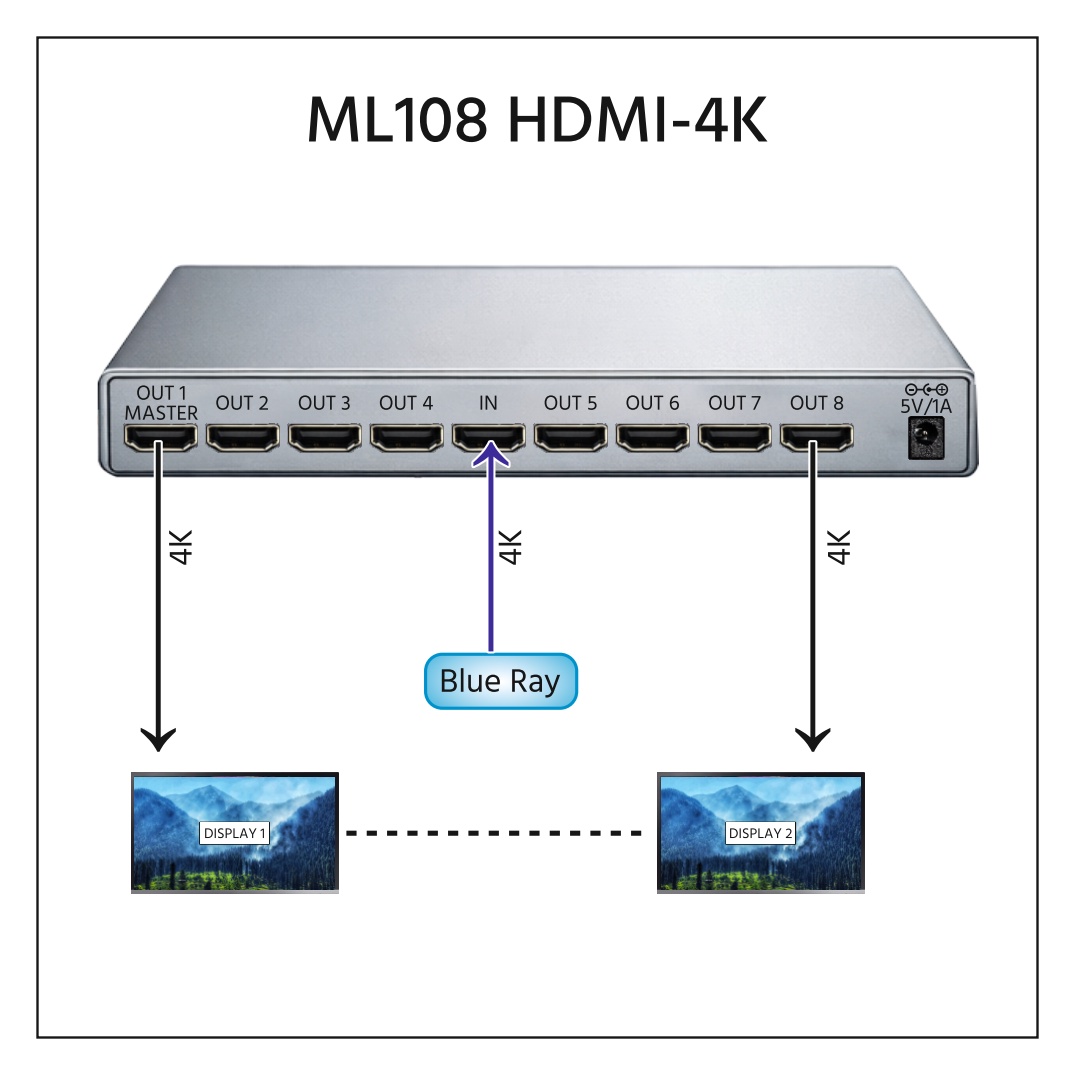

The ML-108 HDMI-4K follows a plug-and-play installation approach. No drivers, configuration software, or technical calibration are needed. Note that the lowest resolution display should be connected to Output Port 1, as the splitter detects and aligns resolution based on this port.
01
Connect the HDMI Source
Plug the HDMI cable from your source device, such as a computer, media player, DVR, or camera, into the single HDMI input port of the ML-108 HDMI-4K. Ensure the source device is powered on before proceeding.
02
Connect the Displays
Connect up to eight HDMI displays to the output ports using standard HDMI cables. For DVI displays, use a compatible HDMI-to-DVI adapter. Connect the lowest resolution display to Output Port 1 to ensure correct resolution detection.
03
Power the Unit
Connect the supplied power adaptor to the splitter. Once powered, the front-panel LEDs will indicate power status and active output connections, confirming the unit is operational and ready for signal distribution.
04
Automatic Signal Distribution
The ML-108 HDMI-4K detects the incoming HDMI signal and distributes it across all connected outputs automatically. No user configuration is required. Signal equalization and re-clocking operate continuously to maintain output quality.
Designed for real-world AV environments
The ML-108 HDMI-4K is deployed across commercial and institutional settings where a single content source must be shown consistently across multiple displays at the same time.
Digital Signage Networks
Distribute promotional or informational content from a single media source to multiple displays across retail outlets, airports, lobbies, and public spaces, ensuring synchronized and consistent messaging at all screens.
Corporate and Training Environments
Enable simultaneous presentation display across multiple monitors or projectors in conference halls, training rooms, and corporate briefing areas, allowing every attendee to view the same content at full resolution.
Retail and Commercial Installations
Support synchronized display output across product showcase walls, point-of-sale areas, and customer engagement zones in retail environments, keeping all screens aligned with the same promotional or product content.
Institutional AV Infrastructure
Deploy centralized HDMI signal distribution across multiple zones within educational institutions and government facilities, allowing a single content source to reach multiple classrooms, auditoriums, or departmental display zones.
Command and Control Rooms
Distribute a single feed from a primary monitoring system or workstation to multiple operator screens in security control rooms, network operations centers, and mission-critical environments requiring continuous synchronized monitoring.
Broadcast and Event Setups
Feed a single camera or video source to multiple preview monitors simultaneously in live event production, broadcast studios, and AV rental setups, maintaining signal integrity across all connected display endpoints.
ML-VGAA HD1 Specifications
- Video
- Signal Processing
- Installation and Operation
- Indicators
- General
Frequently asked questions
What is the purpose of the ML-108 HDMI-4K splitter?
The ML-108 HDMI-4K distributes a single HDMI source signal to eight HDMI displays simultaneously, making it suitable for synchronized multi-display environments such as digital signage networks, corporate presentation setups, and institutional AV infrastructure.
Does this splitter support 4K resolution at 60Hz?
Yes. The device supports Ultra HD resolution up to 4Kx2K at 60Hz (4:2:0), ensuring sharp and clear video output across all connected displays. This makes it suitable for professional multi-screen deployments requiring high-definition content delivery.
How does the splitter maintain signal quality across multiple outputs?
The unit uses built-in signal equalization and re-clocking technology to stabilize the HDMI signal and reduce transmission errors across all eight outputs. This ensures consistent display performance in multi-screen installations where signal integrity is critical.
Is the ML-108 HDMI-4K compatible with DVI displays?
Yes. The splitter can interface with DVI displays using appropriate HDMI-to-DVI adapters, allowing flexibility in mixed-format AV setups where both HDMI and DVI displays are installed within the same infrastructure. Adapters are not included and must be sourced separately.
Does this device require software or drivers for installation?
No. The ML-108 HDMI-4K operates on a plug-and-play basis without any software or driver requirements. Once powered and connected, it detects the incoming HDMI signal and distributes it automatically, enabling quick deployment in professional AV installations without any configuration steps.
Why should the lowest resolution display be connected to Output Port 1?
The ML-108 HDMI-4K uses Output Port 1 as its reference for resolution detection and alignment. Connecting the lowest resolution display to this port ensures the splitter calibrates output resolution correctly across all connected screens, preventing compatibility issues with displays that support different maximum resolutions.
What source devices are compatible with the ML-108 HDMI-4K?
The splitter is compatible with any HDMI-enabled source device, including computers, media players, DVRs, and cameras. It supports HDCP 1.4 compliant sources, making it suitable for environments that distribute protected content alongside standard AV signals.
