Milestone Electronics
Model: ML-104HDMI-4K
1 In 4 Out HDMI Splitter (4K@60Hz)
The ML-104HDMI-4K is a professional 1×4 HDMI splitter that distributes a single HDMI source to four displays simultaneously at Ultra HD 4K@60Hz resolution, with built-in signal equalization and re-clocking for stable output in professional AV installations.
- Distributes one HDMI input to four HDMI outputs simultaneously
- Supports Ultra HD 4K@60Hz (4:2:0) resolution across all outputs
- Built-in signal equalization and re-clocking for transmission stability
- HDCP 1.4 compliant for compatibility with protected digital content
- Plug-and-play operation with no software or driver installation required
Yes
Setup
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML-104HDMI-4K

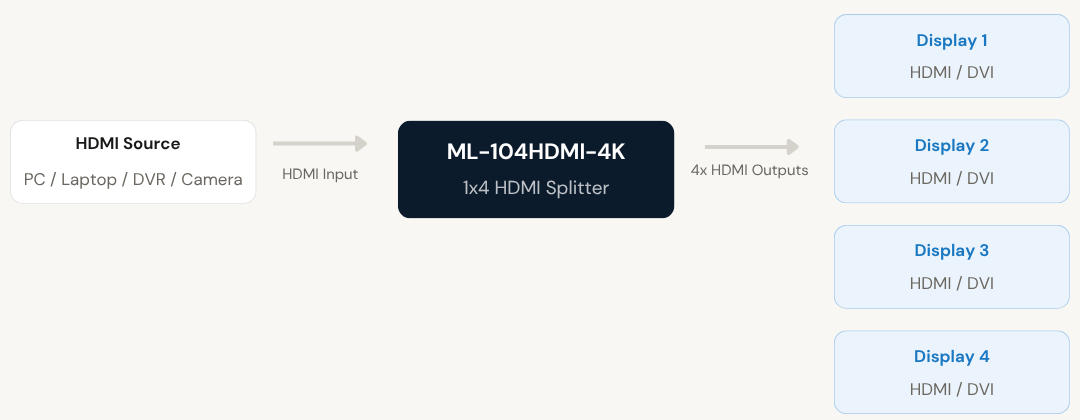

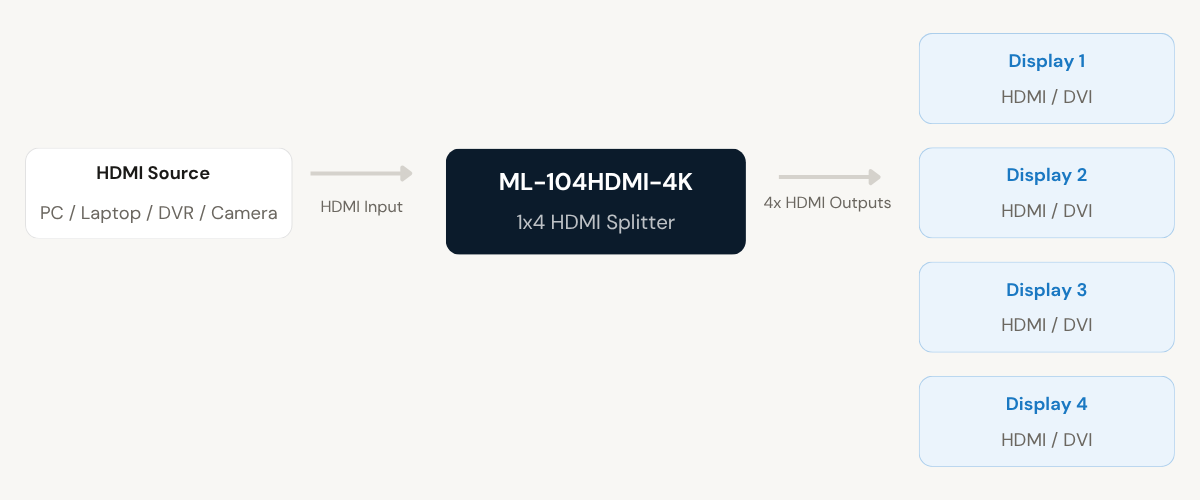

The ML-104HDMI-4K enables a single HDMI source, such as a computer, laptop, DVR, media player, or camera, to feed four HDMI-enabled displays at the same time. This ensures uniform content distribution across all connected output devices without signal degradation.
In commercial AV environments, consistent signal performance is critical. The unit integrates signal equalization and re-clocking technology to maintain signal stability and reduce transmission errors, ensuring reliable output across multiple displays simultaneously.
The splitter is compatible with HDMI-enabled HDTVs, projectors, and monitors. It can also interface with DVI displays using appropriate adapters, making it adaptable for mixed infrastructure environments where legacy and modern displays coexist.
With HDCP 1.4 compliance, the ML-104HDMI-4K supports protected digital content sources. Front-panel LED indicators provide clear visibility of power status and active output connections, assisting during installation and ongoing monitoring.
Configuration
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for reliable multi-display distribution
One HDMI source. Four synchronized displays. Professional-grade signal stability at 4K@60Hz.
4K@60Hz Ultra HD Support
The ML-104HDMI-4K supports resolution up to 4Kx2K@60Hz (4:2:0), delivering sharp and stable video output across all four connected displays simultaneously.
- Ultra HD 4K@60Hz resolution
- 4:2:0 colour sampling
- Consistent output quality on all four ports
1x4 Simultaneous HDMI Distribution
Distributes one HDMI input to four HDMI outputs simultaneously, ensuring synchronized display without latency or signal drop across all connected screens.
- Single HDMI source to four outputs
- Synchronized content on all displays
- No latency or signal loss between outputs
Signal Equalization and Re-clocking
Integrated signal management enhances transmission stability and maintains output consistency, particularly in professional AV installations where signal integrity across all outputs is essential.
- Built-in signal equalization circuitry
- Re-clocking reduces transmission errors
- Stable output for continuous professional operation
HDCP 1.4 Compliance
Compliant with HDCP 1.4 standards, the splitter allows compatibility with protected digital content sources, making it suitable for broadcast, media playback, and secured AV environments.
- HDCP 1.4 certified
- Compatible with protected content sources
- Suitable for DVR, media player, and camera inputs
HDTV and DVI Compatibility
Works seamlessly with HDMI-enabled HDTVs, projectors, and monitors. Supports DVI interfaces using suitable adapters, providing deployment flexibility in mixed-format AV infrastructure environments.
- Compatible with HDMI displays and projectors
- DVI support via HDMI-to-DVI adapters
- Adaptable for mixed-format environments
LED Operational Indicators
Front-panel LED indicators provide clear visibility of power status and active output connections, assisting technicians during installation and simplifying fault identification during troubleshooting.
- Power status LED
- Per-output activity indicators
- Aids installation verification and fault diagnosis
Installation
Simple plug-and-play setup
The ML-104HDMI-4K follows a straightforward connection sequence. No software or driver installation is required, and the unit automatically distributes the signal once powered on.
01
Connect Source and Displays

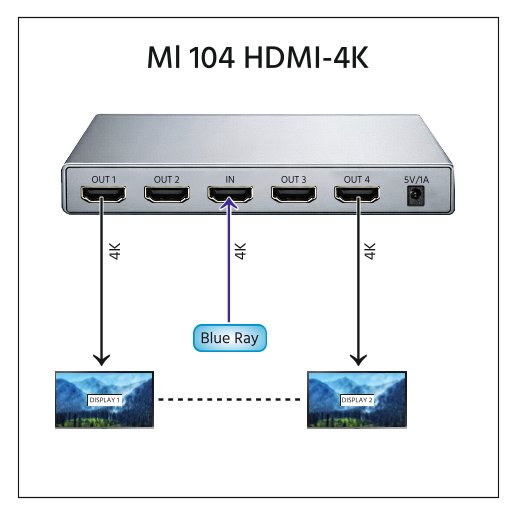

Connect the HDMI source device (computer, laptop, DVR, media player, or camera) to the input port on the splitter. Then connect the required HDMI displays to each of the four output ports. For DVI displays, use an appropriate HDMI-to-DVI adapter at the output.
02
Power On and Verify
For optimal performance, connect all input and output devices before powering on the splitter. Power the unit using the supplied DC adaptor. The splitter will automatically detect and distribute the signal. LED indicators on the front panel will confirm active connections once the system is operational.
Where the ML-104HDMI-4K is deployed
Designed for professional environments that require synchronized multi-display output from a single source.
Corporate Boardrooms
Display the same presentation content across multiple screens within meeting spaces, ensuring every participant has an unobstructed view of the content being presented.
Training and Educational Facilities
Distribute instructional content simultaneously to multiple projectors or monitors within classrooms, lecture halls, and training rooms from a single source device.
Retail and Commercial Installations
Enable synchronized product or promotional displays from a single HDMI source across multiple screens within retail stores and commercial showrooms.
Digital Signage Systems
Drive multiple screens from one media player in commercial signage networks, ensuring consistent and synchronized content playback without the need for separate players at each screen.
Control Rooms and Monitoring Stations
Replicate critical video feeds from a single source across multiple monitoring screens in operations or security control rooms, supporting consistent situational awareness for all operators.
Event and AV Production Setups
Distribute live video or presentation content from a single source to multiple audience-facing displays during conferences, seminars, exhibitions, and large-format events.
Full specification sheet
- Video Specifications
- Signal Distribution
- Compliance and Compatibility
- Installation and Operation
FAQs about the ML-104HDMI-4K
What is the purpose of the ML-104HDMI-4K HDMI splitter?
The ML-104HDMI-4K distributes a single HDMI source signal to four HDMI displays simultaneously, making it suitable for synchronized multi-screen environments in professional AV setups such as boardrooms, training facilities, retail installations, and digital signage networks.
Does this splitter support 4K resolution at 60Hz?
Yes, the device supports Ultra HD resolution up to 4Kx2K@60Hz (4:2:0), ensuring sharp and stable video output across all four connected displays at the same time.
How does the splitter maintain signal stability across multiple outputs?
The unit uses built-in signal equalization and re-clocking technology to enhance transmission stability and reduce signal errors across all outputs. This is particularly important in professional AV installations where consistent signal integrity is critical.
Is the ML-104HDMI-4K compatible with DVI displays?
Yes, it can work with DVI displays using appropriate HDMI to DVI adapters, allowing flexibility in mixed-format AV environments where both HDMI and DVI displays are in use.
Does the device require software or drivers for installation?
No, the ML-104HDMI-4K operates on a plug-and-play basis without any software or driver requirements. The unit automatically detects the signal and distributes it to all four outputs, enabling quick and easy deployment with minimal configuration.
What types of source devices can be connected to the ML-104HDMI-4K?
Yes. The ML-VGAA HD1 is designed to deliver stable performance in continuous-use professional AV systems. It is suited for permanent rack and cabinet installations in corporate, educational, government, and commercial environments where reliable, uninterrupted operation is required.
What is the recommended installation procedure for optimal performance?
For optimal performance, it is recommended that all input and output devices be connected before powering on the splitter. Once powered using the supplied DC adaptor, the unit will automatically distribute the signal. The front-panel LED indicators will confirm active connections when the system is operational.
