Milestone Electronics
Model: ML-102HDMI-4K
1 In 2 Out HDMI Splitter (4K@60Hz)
The ML-102HDMI-4K is a professional 1×2 HDMI splitter that distributes a single HDMI source to two displays simultaneously. It supports Ultra HD 4K@60Hz resolution with built-in signal equalization and re-clocking for stable, consistent output in commercial and institutional AV installations.
- Distributes one HDMI input to four HDMI outputs simultaneously
- Supports Ultra HD 4K@60Hz resolution for sharp display clarity
- Signal equalization and re-clocking for stable transmission
- HDCP compliant, compatible with protected commercial content sources
- Plug-and-play operation with no drivers or software required
Setup
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML-102HDMI-4K
The ML-102HDMI-4K accepts one HDMI input from a source device such as a laptop, media player, DVR, surveillance system, digital signage player, or conferencing system, and distributes the signal to two HDMI displays simultaneously. Both outputs mirror the same content at identical resolution and refresh rate.
Supporting video resolution up to 4Kx2K@60Hz, the splitter ensures sharp image clarity and smooth motion rendering, making it suitable for high-resolution presentation systems and digital display networks. The device is compliant with HDMI standards and supports HDCP-protected content, ensuring compatibility with commercial content sources.
Integrated signal equalization and re-clocking technology enhance transmission stability, helping maintain consistent output even in installations where longer HDMI cable runs are required within permissible limits.
LED indicators on the unit provide visual confirmation of power and active signal status, assisting installers during commissioning and troubleshooting. The compact form factor allows placement in rack shelves, AV cabinets, control rooms, or behind display panels.
Input
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for professional dual-display distribution
One HDMI source. Two synchronized displays. 4K@60Hz resolution with stable signal integrity across both outputs.
4K@60Hz Ultra HD Support
The ML-102HDMI-4K supports Ultra HD resolution up to 4K@60Hz, delivering detailed visuals and stable frame performance across both connected displays, ensuring professional-grade image quality for high-definition content distribution.
- Ultra HD 4Kx2K resolution at 60Hz
- Sharp image clarity for high-resolution presentation systems
- Smooth motion rendering for digital display networks
Simultaneous 1x2 HDMI Distribution
Distributes one HDMI input signal to two HDMI outputs simultaneously without signal loss. Both outputs mirror the same content at identical resolution and refresh rate, ideal for mirrored display setups.
- One input distributed to two outputs at the same time
- No signal degradation across either output
- Identical content on both displays at the same resolution
HDCP Compliance
Fully compatible with HDCP-protected sources, allowing integration with modern media players, set-top boxes, conferencing systems, and commercial playback devices without compatibility conflicts.
- Works with HDCP-protected content sources
- Compatible with media players and conferencing systems
- Supports commercial set-top boxes and digital signage players
Signal Stability and Performance
Built-in signal amplification, equalization, and re-clocking mechanisms help reduce transmission errors and maintain output consistency, supporting dependable performance in professional AV environments with longer cable runs.
- Signal amplification for consistent output across both ports
- Equalization compensates for cable length variation
- Re-clocking reduces jitter and transmission errors
Plug-and-Play Operation
No software configuration or drivers are required. The unit operates immediately upon connection and power-up, simplifying deployment for system integrators and AV technicians in time-critical installations.
- No drivers or software required
- Automatic signal detection on power-up
- Simplifies deployment for AV technicians and system integrators
LED Status Indicators
Onboard LED indicators provide visual confirmation of power status and active signal presence on each output. This assists installers and AV technicians during commissioning, routine checks, and troubleshooting without the need for additional test equipment.
- Visual confirmation of power and signal status
- Assists during commissioning and troubleshooting
- Compact form factor for placement in racks or behind panels
Installation
Straightforward integration into AV infrastructure

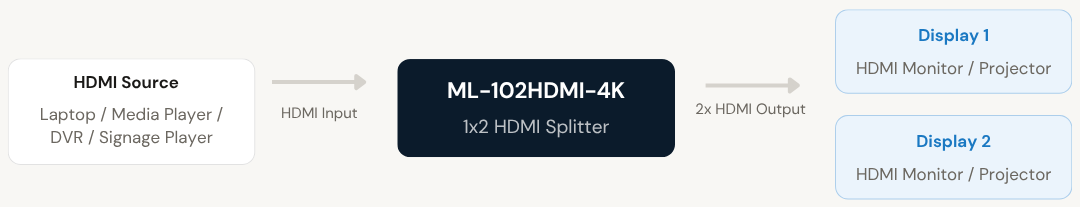

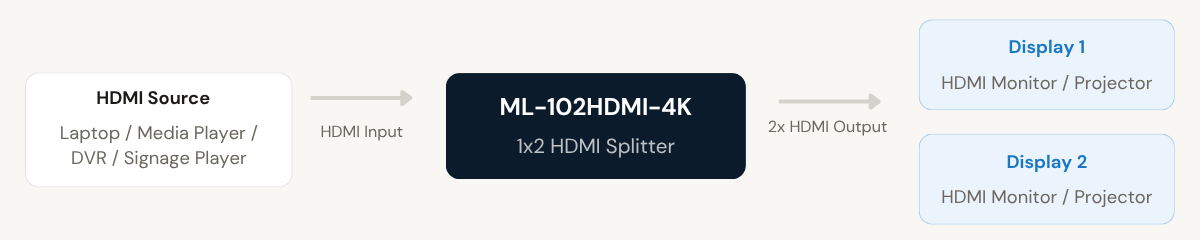

The ML-102HDMI-4K is designed for quick integration into existing AV setups. Connect the HDMI source, attach the two display devices, power up, and the unit is ready to operate.
01
Source and Display Connection
Connect the HDMI source device (laptop, media player, DVR, surveillance system, digital signage player, or conferencing unit) to the HDMI input port on the splitter. Connect two HDMI display devices to the two HDMI output ports. Once powered using the supplied DC adaptor, the splitter automatically detects and distributes the signal to both outputs.
02
Placement and Form Factor
The compact form factor of the ML-102HDMI-4K allows flexible placement within professional AV environments. It can be mounted on rack shelves, housed inside AV cabinets or control rooms, or positioned behind display panels. LED indicators on the unit provide real-time visual confirmation of power and active signal status during and after commissioning.
Where the ML-102HDMI-4K performs
Designed for structured commercial and institutional AV environments where synchronized dual-display output and signal reliability are essential.
Corporate Boardrooms
Mirror presentations across two large-format displays for improved visibility during executive meetings and client presentations. Ensures all participants have an unobstructed view of shared content.
Training and Educational Facilities
Distribute lecture or training content simultaneously to dual projectors or monitor setups within classrooms and seminar halls. Eliminates the need for multiple source devices in multi-screen learning environments.
Retail and Commercial Installations
Drive two synchronized promotional displays from a single media source for consistent branding and advertising. Ideal for digital signage installations in showrooms, retail outlets, and commercial lobbies.
Control Rooms and Monitoring Stations
Replicate critical visual feeds across two monitoring screens for operational redundancy and improved situational awareness. Suitable for security operations, broadcast monitoring, and network operation centres.
Digital Signage Networks
Connect a single digital signage player to two display screens, enabling synchronized content playback across dual screens in airports, transit hubs, hospitality environments, and event venues.
Conferencing and Presentation Systems
Distribute output from a conferencing system or presentation laptop to two screens simultaneously in huddle rooms, multi-screen auditoriums, or hybrid meeting spaces without additional source devices.
Full specification sheet
- Video Specifications
- Connectivity
- Signal Processing
- Power and Indicators
- Installation
- Suitable Environments
FAQs about the ML-102HDMI-4K
What is the function of the ML-102HDMI-4K HDMI splitter?
The ML-102HDMI-4K takes one HDMI input and mirrors the same signal to two HDMI outputs simultaneously, enabling synchronized dual-display setups from a single source device such as a laptop, media player, DVR, or conferencing system.
Does this splitter support 4K resolution at 60Hz?
Yes, the device supports Ultra HD resolution up to 4K@60Hz, ensuring clear and stable video output on both connected displays at the same time.
How does the splitter maintain signal quality?
It uses built-in signal amplification, equalization, and re-clocking technology to reduce transmission errors and maintain output consistency across both HDMI ports, which also helps sustain stable performance over longer HDMI cable runs within permissible limits.
Is the ML-102HDMI-4K compatible with HDCP-protected devices?
Yes, it is HDCP compliant and works with protected content sources such as media players, set-top boxes, and conferencing systems, allowing integration into commercial AV environments without content compatibility issues.
Does this device require software or drivers for installation?
No, the ML-102HDMI-4K operates on a plug-and-play basis without any software or driver requirements, enabling quick integration into professional AV setups. The splitter automatically detects and distributes the signal once powered using the supplied DC adaptor.
Do both connected displays show the same content, or can they show different content?
The ML-102HDMI-4K is a splitter, not a matrix switcher. Both HDMI outputs display the same mirrored content from the single input source at identical resolution and refresh rate. It is designed for synchronized dual-display setups, not for distributing different content to each screen.
Where can the ML-102HDMI-4K be physically installed?
The compact form factor of the unit allows it to be placed in rack shelves, AV cabinets, control rooms, or behind display panels. LED indicators on the unit help confirm power and signal status during commissioning and troubleshooting without requiring additional equipment.
