Analog to Digital Audio Convertor
The ML ADA102 converts one analog L/R audio input simultaneously to one Toslink optical digital audio output and one Coaxial SPDIF digital audio output. The digital output signal is 2-channel uncompressed LPCM data.
- Converts one analog L/R input to Toslink optical and Coaxial SPDIF outputs simultaneously
- Digital output format is 2-channel uncompressed LPCM
- Supports 48 KHz audio sampling rate
- Electromagnetic-noise-free transmission for clean signal delivery
- No settings required. Install and operate immediately
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML ADA102

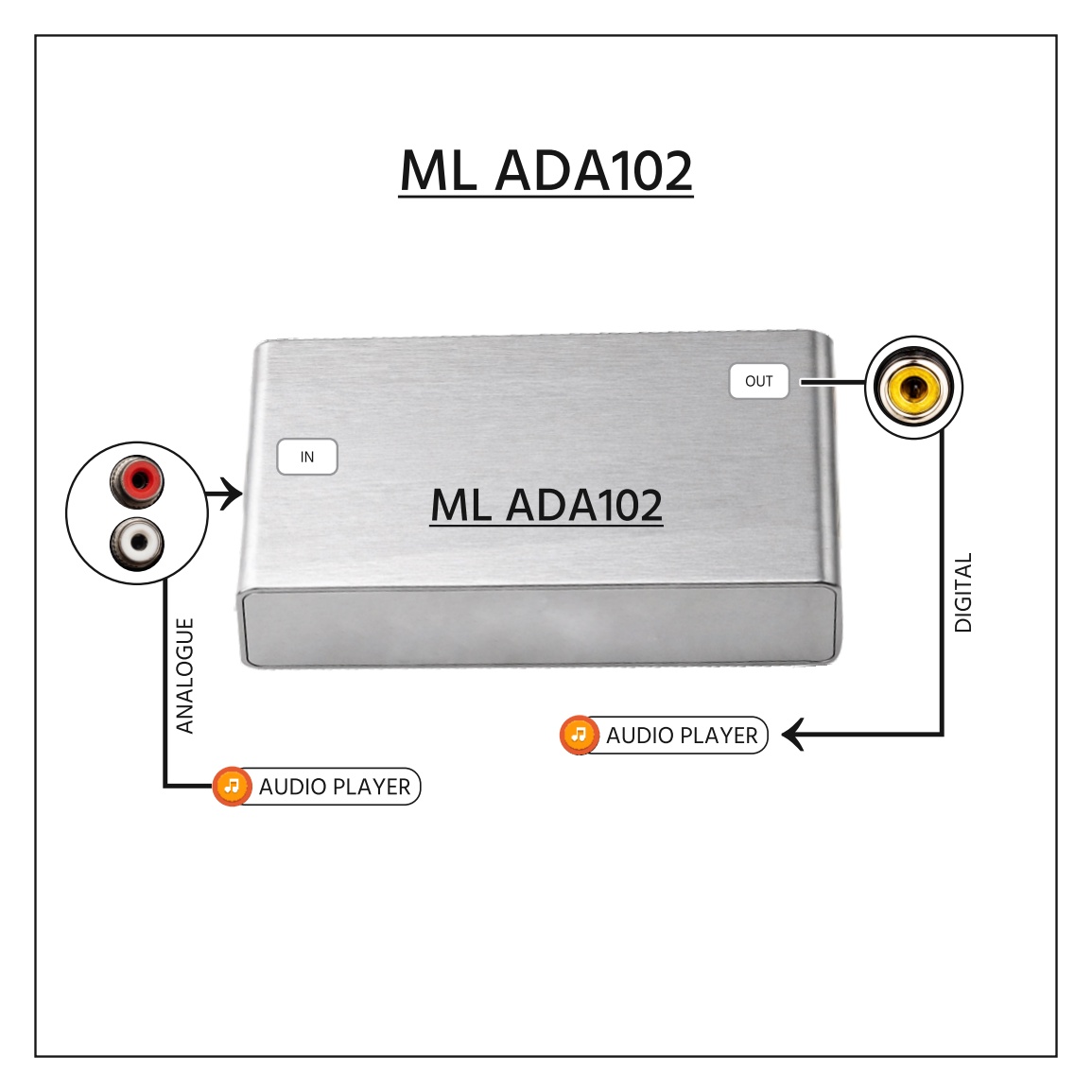

The ML ADA102 is a compact analog to digital audio convertor designed to bridge analog audio sources with digital audio receivers and amplifiers. It accepts a single stereo L/R RCA analog audio input and simultaneously delivers two digital audio outputs: one Toslink optical and one Coaxial SPDIF.
The digital output signal is formatted as 2-channel uncompressed LPCM (Linear Pulse Code Modulation), the most widely compatible format for digital audio receivers, home theatre amplifiers, and professional AV equipment. This ensures full compatibility without additional processing or decoding requirements at the receiving end.
Operating at a fixed 48 KHz sampling rate, the ML ADA102 delivers consistent audio quality with high tone fidelity and a low noise floor. Its electromagnetic-noise-free transmission design prevents interference-related audio degradation, making it suitable for environments with dense electronic equipment.
The unit requires no configuration or driver installation. It is powered by a standard 5V/1A DC adaptor and is ready for use immediately after connecting source and output cables. Its compact dimensions of 70mm x 50mm x 22mm and low weight of 150 grams make it suitable for integration into rack systems, AV cabinets, or desktop setups.
Analog Input
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for reliable analog to digital audio conversion
One analog input. Two simultaneous digital outputs. Uncompressed LPCM audio with zero configuration required.
Simultaneous Dual Digital Output
The ML ADA102 converts one analog L/R stereo input into two digital audio outputs at the same time. One Toslink optical output and one Coaxial SPDIF output are active simultaneously, allowing connection to two different digital receivers without signal splitting.
- One Toslink optical digital output
- One Coaxial SPDIF digital output
- Both outputs active simultaneously
Uncompressed LPCM Audio Format
The digital output is delivered as 2-channel uncompressed LPCM (Linear Pulse Code Modulation) data. This format is directly compatible with the vast majority of digital AV receivers, amplifiers, and processors without requiring additional decoding.
- 2-channel uncompressed LPCM format
- High compatibility with AV receivers and amplifiers
- No lossy compression applied to the audio signal
High Tone Quality at 48 KHz Sampling
Audio sampling is fixed at 48 KHz, delivering high tone quality with a low noise floor. This sampling rate is the standard for professional audio and broadcast applications, ensuring accurate digital representation of the analog source.
- Full frequency range: 20Hz to 20KHz
- Minimal noise and low distortion levels
- High channel separation for reduced interference
Electromagnetic-Noise-Free Transmission
The convertor is designed to provide electromagnetic-noise-free signal transmission. This is particularly important in environments with dense electronic equipment such as data centres, control rooms, and AV racks where EMI can degrade analog signal quality.
- Noise-free digital output in high-EMI environments
- Suitable for data centres and corporate AV installations
Zero Configuration. Instant Operation
The ML ADA102 requires no software, drivers, or settings adjustment. Connect the analog source, connect the digital output devices, plug in the 5V DC adaptor, and the unit is operational. This makes deployment fast and eliminates setup complexity.
- No drivers or software required
- No settings or configuration needed
- Powered by standard 5V/1A DC adaptor
Compact and Lightweight Form Factor
At 70mm x 50mm x 22mm and weighing just 150 grams, the ML ADA102 is suitable for integration in space-constrained installations. It fits in AV cabinets, equipment racks, or desktop setups without occupying significant space.
- Dimensions: 70mm x 50mm x 22mm
- Weight: 150 grams
- Suitable for rack, cabinet, or desktop placement
Installation
Simple three-step installation
The ML ADA102 requires no configuration. Follow the three steps below to complete a working installation.
01
Connect the Audio Source
Connect the analog audio source device to the convertor using an appropriate L/R RCA cable. The source can be a DVD player, HD media player, PC audio output, or any device providing an analog stereo L/R output signal. Ensure a secure connection at both the source and the convertor's RCA input.
02
Connect the Digital Output Devices
Connect the AV receiver or amplifier to the convertor using an appropriate Toslink optical cable and/or a Coaxial cable. Both outputs can be connected simultaneously to different destination devices. Ensure each cable is seated firmly at the convertor output and the receiving device input.
03
Apply Power
Insert the DC 5V/1A adaptor into the convertor's power input. The unit powers on immediately with no initialisation required. The convertor begins processing and outputting the digital audio signal as soon as power is applied and source and output connections are in place.
04
Verify Output at Receiving Devices
Confirm that the connected AV receivers or amplifiers are set to accept the appropriate digital input: optical (Toslink) or coaxial (SPDIF). Select the correct input on each receiving device and verify that audio playback is functioning as expected from the analog source.
Where the ML ADA102 is used
Suitable for any environment where analog audio sources need to feed digital AV systems without signal loss or noise interference.
Data Centre Control Rooms
Convert analog audio outputs from monitoring or communications equipment to digital format for integration with digital AV systems in data centre environments. The noise-free transmission design suits high-EMI locations.
Conference Room Presentations
Enable analog audio sources such as laptops or media players to connect to digital conference room AV systems. Both Toslink and Coaxial outputs allow simultaneous connection to speaker systems and recording equipment.
School and Educational Institutions
Connect analog audio outputs from older classroom equipment, such as DVD players or audio playback devices, to digital amplifiers or projector systems used in modern educational setups.
Corporate Training Rooms
Integrate analog audio sources into digital AV infrastructure in training rooms. The convertor allows trainers to use legacy media players or PC analog outputs with modern digital sound systems without additional adapters.
DVD and HD Player Integration
Used with DVD players and HD media players that provide analog L/R outputs, enabling their audio to be received by digital home theatre receivers or professional AV amplifiers that only accept Toslink or Coaxial digital inputs.
PC Digital Audio Output
Convert the analog audio output of desktop or workstation computers into a digital signal for connection to digital audio monitors, amplifiers, or recording interfaces that require a Toslink or SPDIF coaxial input.
Full specification sheet
- Audio Input
- Audio Output
- Power
- Environmental
- Physical
FAQs about the ML ADA102
What does the ML ADA102 convert?
The ML ADA102 converts one analog stereo L/R audio input (via RCA connectors) into two simultaneous digital audio outputs: one Toslink optical output and one Coaxial SPDIF output. Both outputs carry a 2-channel uncompressed LPCM digital audio signal.
Can both digital outputs be used at the same time?
Yes. The Toslink optical output and the Coaxial SPDIF output are both active simultaneously. You can connect two separate digital receivers or amplifiers and both will receive the converted audio signal at the same time from a single analog input source.
What audio sampling rate does the convertor support?
The ML ADA102 supports an audio sampling rate of 48 KHz. This is a standard sampling rate for professional audio and broadcast applications, ensuring high tone quality and accurate digital representation of the analog input signal.
Does the unit require any configuration or software?
No. The ML ADA102 requires no software installation, driver setup, or settings configuration. Connect the analog audio source, connect the digital output devices, and apply the 5V DC power adaptor. The unit begins operation immediately.
What devices can be used as the audio source?
Any device providing an analog stereo L/R RCA audio output can be used as the source. This includes DVD players, HD media players, PCs with analog audio outputs, and other consumer or professional audio equipment with RCA L/R connectors.
What is the digital output format of the ML ADA102?
The digital output is 2-channel uncompressed LPCM (Linear Pulse Code Modulation). This is an uncompressed audio format directly compatible with digital AV receivers, amplifiers, and audio processors without requiring additional decoding hardware or software.
What power supply does the ML ADA102 require?
The ML ADA102 is powered by a standard 5V/1A DC adaptor. The adaptor is not included and must be sourced separately. Ensure the adaptor output matches the 5V/1A specification to avoid damage to the unit.
In what operating temperature range does the convertor function reliably?
The ML ADA102 operates reliably within a temperature range of -10 degrees C to 55 degrees C. For storage when not in use, the safe range is -20 degrees C to 60 degrees C. Operating outside these ranges may affect performance or cause damage.
