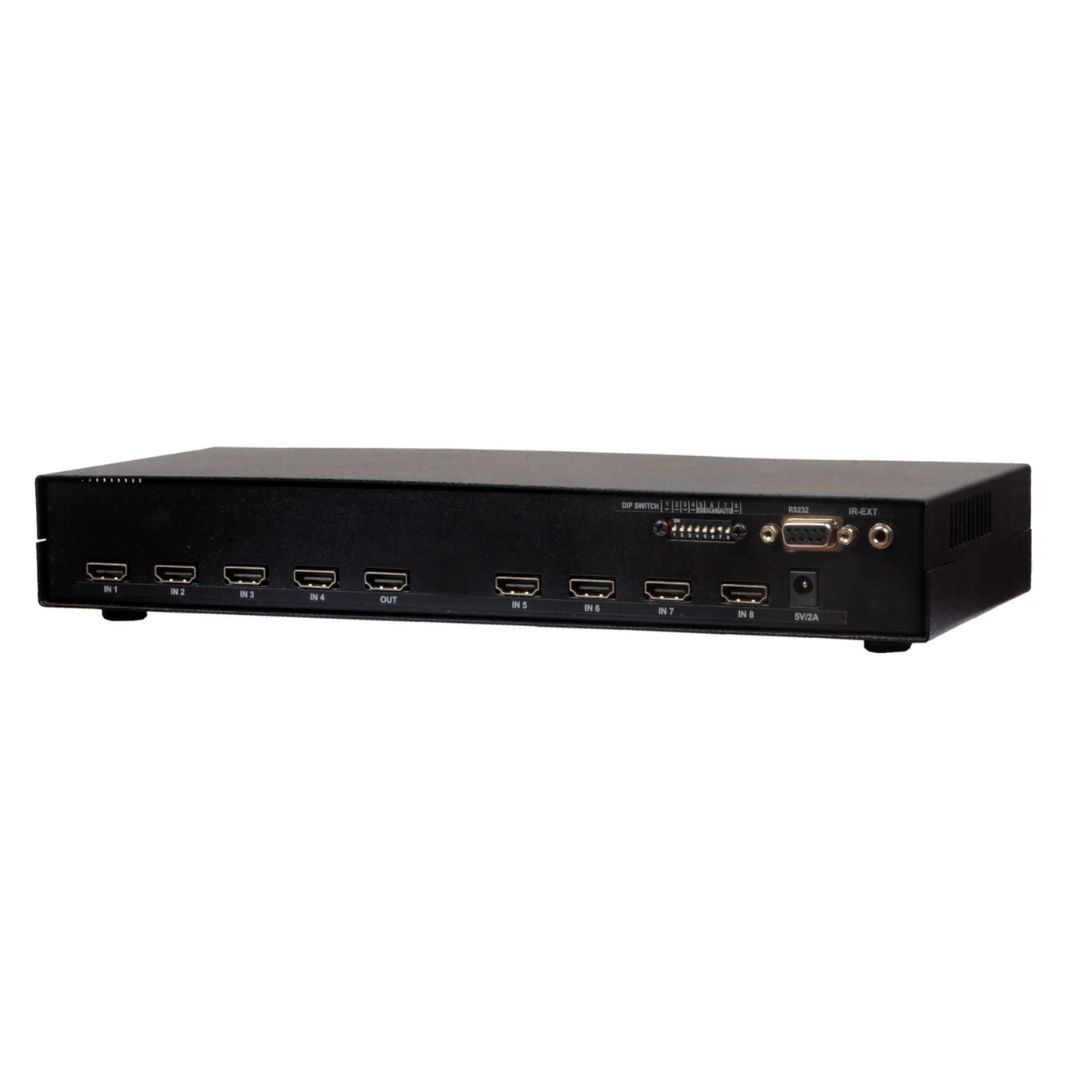

Model: ML-81HDMI
8 In 1 Out HDMI Switch with EDID Management
The ML-81HDMI is a professional 8×1 HDMI switch designed for structured AV environments where multiple HDMI sources connect to a single display. With integrated EDID management and support for common HD resolutions, it ensures stable communication between sources and displays.
- Switch between eight HDMI sources on one display with stable signal performance
- Built-in EDID control to prevent resolution mismatch and signal issues
- Supports 720P, 1080P, and higher HDMI-compatible resolutions
- Manual, automatic, and scan switching modes for flexible operation
- Designed for rack-mounted AV systems and centralized commercial installations
HDMI Inputs
8 Ports
1 Port
Max Resolution
EDID Control
Yes
Switching Modes
Installation
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML-81HDMI

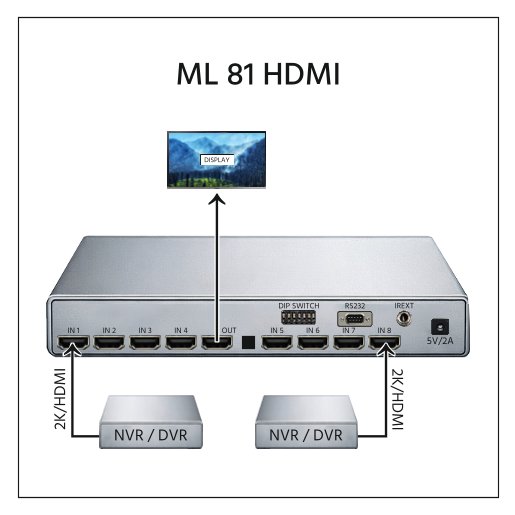

The ML-81HDMI features eight HDMI input ports and one HDMI output port, allowing centralized management of multiple devices such as laptops, media players, set-top boxes, DVRs, surveillance systems, or conferencing equipment. All eight sources are routed to a single connected display through reliable switching operations.
In professional AV setups, improper EDID negotiation often results in resolution mismatch, no signal output, or audio compatibility issues. The ML-81HDMI addresses these challenges through built-in EDID control, ensuring predictable and stable system performance across all connected source devices.
By supporting predefined EDID settings for 720P and 1080P, the switch ensures that source devices output the correct resolution regardless of the display’s native EDID profile. This is particularly useful in installations involving mixed display resolutions, long HDMI distribution chains, and integration with splitters or extenders.
The unit is designed for integration into rack-mounted AV systems, equipment cabinets, and structured installations. Its compact chassis and stable performance make it suitable for centralized AV control setups that can be combined with HDMI extenders, matrix systems, audio processors, or automation platforms.
ML-81HDMI
HDMI Inputs
8 Ports
HDMI Output
1 Port
720P, 1080P, Higher
EDID Management
Yes
Manual Switching
Yes
Auto Switching
Yes
Scan Mode
Yes
Form Factor
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for reliable multi-source switching
Eight HDMI inputs. One stable output. Integrated EDID management for consistent signal performance across all source devices.
8x1 HDMI Switching
Connect up to eight HDMI source devices to a single display and switch between them as required. Suitable for centralised management of laptops, media players, set-top boxes, DVRs, and conferencing equipment.
- 8 HDMI input ports, 1 HDMI output port
- Supports laptops, media players, DVRs, surveillance systems
- Stable signal performance across switching operations
Built-in EDID Management
Integrated EDID control ensures source devices output the correct resolution and audio format regardless of the display's native EDID profile. This prevents handshake failures, resolution mismatches, and signal instability common in multi-source AV environments.
- Predefined EDID settings for 720P and 1080P
- Prevents resolution mismatch and no-signal conditions
- Reduces installation and commissioning time for AV integrators
High-Resolution Video Support
The ML-81HDMI supports common professional resolutions ensuring compatibility with legacy HD displays as well as modern Full HD and higher-resolution panels in the same installation.
- 720P HD resolution
- 1080P Full HD resolution
- Higher HDMI-compatible resolutions supported
Three Switching Modes
The unit offers three distinct input selection modes to suit different operational requirements, from manual front-panel control to fully automated switching and timed sequential scanning.
- Manual switching via front panel controls
- Automatic switching to active HDMI inputs
- Scan mode with adjustable timing for sequential input display
Stable Signal Transmission
Designed for commercial AV deployments, the unit maintains signal integrity across all switching operations, minimising screen flicker, signal dropouts, and handshake delays to ensure reliable continuous display output.
- Minimises flicker and signal dropout during switching
- Reduces handshake delays between source and display
- Built for commercial and enterprise installation environments
Rack-Mount Compatible Design
The compact chassis integrates into standard rack-mounted AV systems and equipment cabinets. The unit can be deployed alongside HDMI extenders, matrix systems, audio processors, and automation platforms for scalable AV infrastructure builds.
- Compact chassis suitable for equipment racks and cabinets
- Compatible with HDMI extenders, matrix systems, and audio processors
- Supports scalable AV infrastructure deployments
Installation
Flexible integration into structured AV systems
The ML-81HDMI is designed for straightforward integration into rack-mounted AV systems and centralized equipment cabinets, with support for multiple switching modes to match site requirements.
01

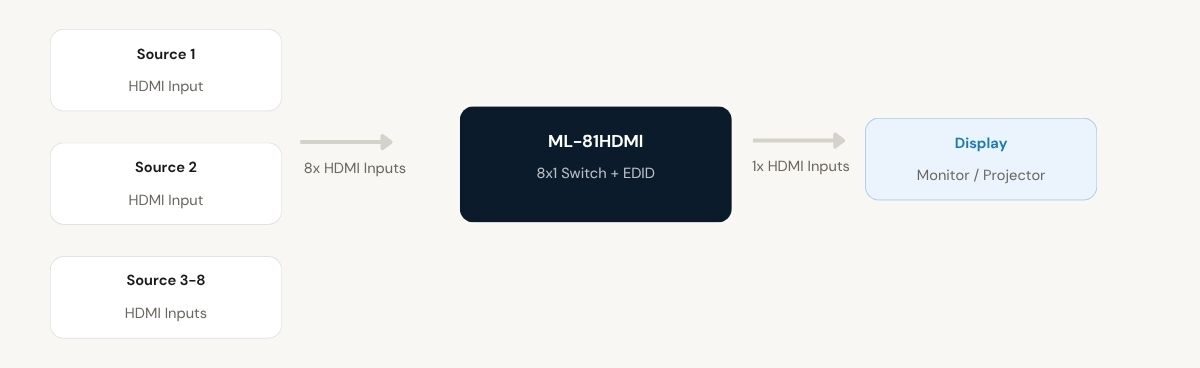

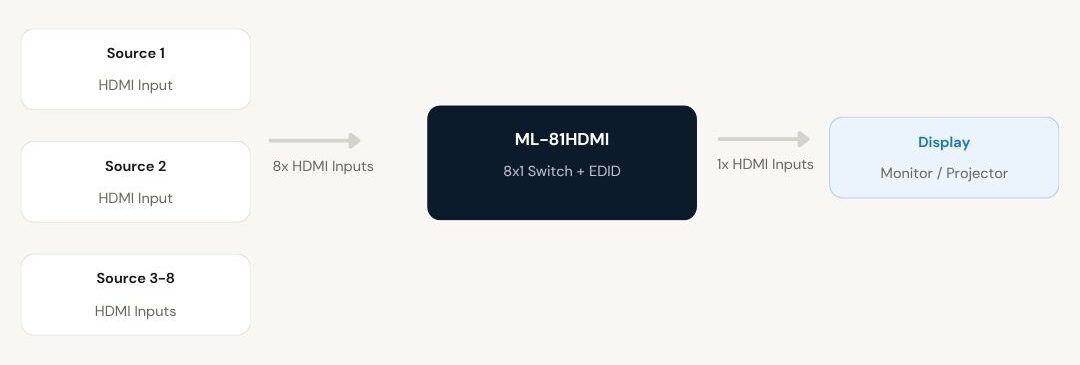

Rack-Mounted AV Installation
The ML-81HDMI mounts directly into standard AV equipment racks or cabinets. Eight HDMI sources connect to the input ports and the single output feeds the primary display. Front panel controls allow operators to select the active source manually. This configuration is suited for boardrooms, training rooms, and control environments where a centralised AV control point is required.
02
Integration with Extended AV Chains
The switch can be deployed in combination with HDMI extenders, matrix systems, audio processors, or automation platforms. In long distribution chains, EDID management ensures source devices output the correct resolution regardless of the downstream display configuration. This makes the unit suitable for installations involving splitters, extenders, or multi-zone AV systems requiring consistent signal control.
Front panel, auto, or scan mode selects the active source

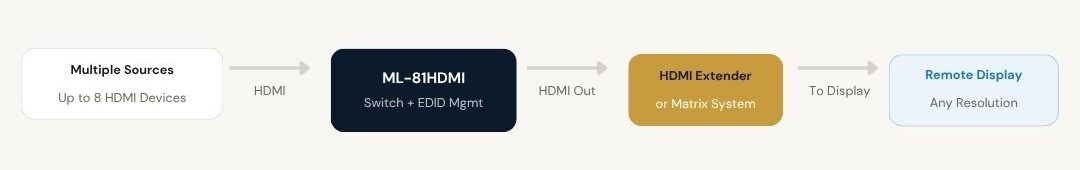

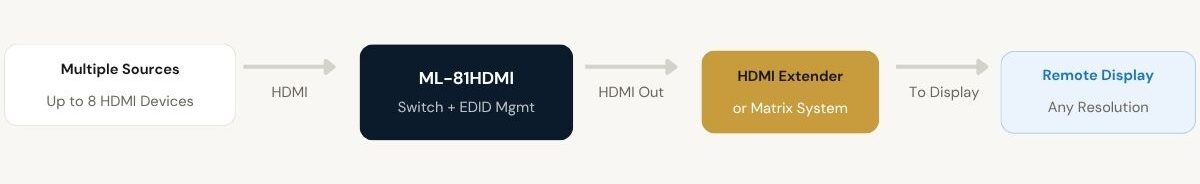

Integration with HDMI Extender or Matrix System
Where the ML-81HDMI performs
Suited for professional environments requiring centralized HDMI source management, stable resolution control, and reliable switching between multiple devices on a single display.
Corporate Boardrooms
Switch between multiple presentation sources including laptops, media players, and conferencing systems using a single boardroom display. The ML-81HDMI enables seamless source transitions without manual cable changes.
Training and Educational Facilities
Manage various teaching devices including document cameras, computers, and video players from a single display. EDID management provides reliable resolution control across different source equipment in classroom and training environments.
Control Rooms
Efficiently manage multiple HDMI sources within monitoring environments. The scan mode and auto-switching capabilities allow operators to cycle through surveillance feeds, data systems, and status displays on a single monitor.
Hospitality Installations
Enable centralised HDMI source management for banquet halls and event spaces. Multiple video sources such as set-top boxes, media servers, and presentation systems can be switched to the venue display as event requirements change.
Display Demonstration Areas
The scan mode with adjustable timing enables sequential cycling through connected HDMI sources, making the switch suitable for showroom displays, product demonstration setups, and digital signage environments requiring automated source rotation.
Structured AV Rack Installations
Integrates into rack-mounted AV infrastructure alongside HDMI extenders, matrix systems, and audio processors. EDID management ensures stable operation across long distribution chains and mixed-resolution display environments within centralised AV racks.
Full specification sheet
- Video Specifications
Supported Resolutions
HDMI
- Connectivity
1 Port
- EDID Management
- Switching Modes
- Installation
FAQs about the ML-81HDMI
What does the ML-81HDMI HDMI switch do?
The ML-81HDMI allows users to connect eight HDMI source devices to one display and switch between them as needed. It centralises management of devices such as laptops, media players, set-top boxes, DVRs, surveillance systems, and conferencing equipment on a single connected display.
How does EDID management improve system performance?
EDID management ensures that source devices output the correct resolution and audio format, preventing handshake issues and signal instability. By using predefined EDID settings for 720P and 1080P, the switch forces connected sources to output at a known stable resolution regardless of the display’s native EDID profile. This is especially valuable in installations with mixed display types, long HDMI chains, or integration with splitters and extenders.
Which resolutions are supported by this HDMI switch?
The switch supports 720P, 1080P, and other higher HDMI-compatible resolutions suitable for professional AV setups. This ensures compatibility with both legacy HD displays and modern Full HD and higher-resolution panels.
What switching modes are available on the ML-81HDMI?
The device supports three switching modes. Manual switching allows direct input selection via the front panel controls. Automatic switching detects active HDMI inputs and switches to them without operator intervention, which is useful in conference room environments. Scan mode performs sequential input switching with adjustable timing, suited to display demonstration areas and monitoring environments.
Where is the ML-81HDMI commonly used?
It is commonly deployed in boardrooms, training facilities, hospitality installations, and control rooms for centralised HDMI source management. It is also well-suited for structured rack-mounted AV systems where multiple sources need to be routed to a single display with consistent signal stability.
Can the ML-81HDMI be used with HDMI extenders or matrix systems?
Yes. The ML-81HDMI is designed to integrate with HDMI extenders, matrix systems, audio processors, and automation platforms to create scalable AV infrastructures. The built-in EDID management is particularly valuable in these configurations, as it ensures source devices output at the correct resolution even when the signal passes through additional components in the distribution chain.
What types of source devices can be connected to the ML-81HDMI?
The ML-81HDMI accepts any HDMI-compatible source device across its eight input ports. Typical connected devices include laptops, desktop computers, media players, set-top boxes, DVRs, surveillance system outputs, and conferencing equipment. Any device with a standard HDMI output can be connected and switched through the unit.
