RS485 (2-Wire) to RS422 / RS485 (4-Wire) Converter
The LD-15UCR enables seamless communication between RS485 (2-wire) devices and RS422 or RS485 (4-wire) networks. Designed for industrial automation and monitoring systems, it ensures stable and efficient data transmission across mixed-wiring serial networks.
- Converts RS485 (2-wire) to RS422 (4-wire) and RS485 (4-wire)
- Supports reliable differential signal transmission for noise-resistant communication
- Enables full-duplex communication on 4-wire RS422 and RS485 networks
- Improves compatibility between different serial communication systems
- Panel-mounted installation for secure integration within system enclosures
Yes
Setup
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
Understanding the LD-15UCR
The LD-15UCR allows devices that communicate using 2-wire RS485 protocols to interface with systems that operate on 4-wire RS422 or RS485 communication networks. These different wiring formats are commonly used in industrial automation, monitoring systems, and communication infrastructure.
By converting the communication signals between these formats, the LD-15UCR enables efficient data transmission across serial networks without requiring significant changes to existing equipment or communication architecture. This makes the converter an effective solution for upgrading or expanding industrial communication systems.
The converter supports differential signal transmission, which improves communication reliability and reduces the impact of electrical noise commonly present in industrial environments. Its robust communication capability allows system integrators to connect devices with different serial configurations without introducing signal instability or communication delays.

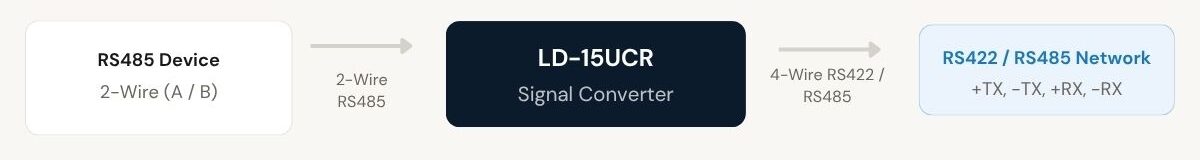

The 4-wire RS422 and RS485 output uses separate differential pairs for transmitting and receiving data, represented as +TX, -TX, +RX, and -RX signals. This wiring format supports full-duplex communication and provides improved signal reliability over long cable distances.
Input
Output
Signal Mode
TX/RX Lines
Network Support
Installation
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for reliable industrial serial communication
Converts 2-wire RS485 to 4-wire RS422 or RS485 with differential signal transmission for stable communication in demanding environments.
2-Wire to 4-Wire Conversion
The LD-15UCR accepts RS485 (2-wire) communication signals and converts them to RS422 or RS485 (4-wire) format, enabling interoperability between devices using different serial wiring configurations.
- Converts RS485 (2-wire) to RS422 (4-wire)
- Converts RS485 (2-wire) to RS485 (4-wire)
- No changes required to existing equipment
Differential Signal Transmission
The converter uses differential signal transmission on both input and output interfaces. This method significantly reduces susceptibility to electrical noise and interference, which is common in industrial environments with heavy machinery and power equipment.
- Noise rejection suited for industrial environments
- Maintains signal integrity over long cable distances
- Separate TX and RX differential pairs on 4-wire output
Full-Duplex Communication Support
By converting to 4-wire RS422 or RS485, the LD-15UCR enables full-duplex operation. Separate differential pairs handle data transmission and reception simultaneously, making it suitable for systems requiring concurrent two-way data exchange.
- Simultaneous data transmission and reception
- Separate +TX, -TX, +RX, -RX signal lines
- Suitable for point-to-point RS422 connections
Multi-Drop RS485 Network Support
The 2-wire RS485 input interface is compatible with multi-drop industrial networks, where several devices share the same communication bus. This allows the LD-15UCR to be deployed in existing RS485 networks without disrupting the bus topology.
- Compatible with existing RS485 multi-device bus networks
- A and B wiring format for 2-wire input
- Supports multiple devices on a shared communication line
Panel-Mount Installation
The LD-15UCR is designed for panel-mounted installation or integration within system enclosures. This ensures secure placement in industrial control panels, equipment racks, and system cabinets with organised wiring and reliable long-term operation.
- Suitable for panel mounting and enclosure integration
- Organised wiring within system cabinets
- Reliable operation in permanent installations
Cross-System Compatibility
The converter improves compatibility between devices that use different serial communication wiring formats. It enables system integrators to connect legacy and modern equipment across a shared network without introducing signal instability or requiring architectural changes.
- Bridges RS485 2-wire devices with RS422 and RS485 4-wire systems
- Simplifies system integration and network expansion
- No signal instability or communication delays introduced
Installation
Panel-mounted for secure system integration
The LD-15UCR is designed for direct integration within industrial system enclosures and control panels, providing a stable and organised wiring environment for serial communication conversion.
01

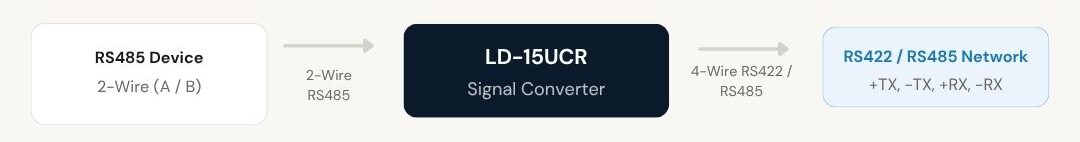

RS485 (2-Wire) Input Connection
Connect the RS485 (2-wire) device to the input terminals of the LD-15UCR using the A and B signal lines. This input interface accepts signals from existing RS485 multi-drop networks, allowing several devices to share the same bus without requiring changes to the connected equipment or communication setup.
02
RS422 / RS485 (4-Wire) Output Connection
Connect the 4-wire RS422 or RS485 network to the output terminals of the LD-15UCR using the +TX, -TX, +RX, and -RX signal lines. This output supports full-duplex communication over separate transmit and receive differential pairs, enabling reliable point-to-point connections or integration with 4-wire serial networks.
Where the LD-15UCR performs
Designed for industrial environments where reliable serial communication across mixed-wiring formats is essential for system operation and integration.
Industrial Automation Systems
Connect 2-wire RS485 field devices such as sensors, actuators, and controllers to 4-wire RS422 or RS485 control networks within automated production and manufacturing environments.
Process Monitoring and Control Networks
Integrate monitoring devices operating on 2-wire RS485 with process control systems that require 4-wire RS422 communication, ensuring continuous and accurate data acquisition across the network.
RS485 Multi-Device Communication Networks
Deploy within existing RS485 multi-drop bus networks to interface devices with differing wiring formats. Supports multi-device communication without disrupting the shared bus architecture.
Data Acquisition and Instrumentation Systems
Interface instrumentation equipment using 2-wire RS485 with data acquisition platforms and SCADA systems that require 4-wire serial communication for reliable, long-distance data transmission.
Building Management and Facility Automation
Connect building management sensors, HVAC controllers, and access control devices using RS485 (2-wire) to centralised facility automation controllers operating on RS422 or 4-wire RS485 networks.
Remote Monitoring and Industrial Communication
Enable reliable serial communication between remotely located RS485 devices and centralised RS422 or RS485 (4-wire) monitoring systems, maintaining data integrity over extended cable distances in industrial installations.
ML 102 Specifications
- Input Interface
- Output Interface
- Signal Characteristics
- Installation
- Suitable Applications
FAQs about the LD-15UCR
What wiring formats does the LD-15UCR support?
The LD-15UCR converts 2-wire RS485 communication signals into 4-wire RS422 or RS485 signals, enabling compatibility across devices with different serial wiring configurations. The 2-wire input uses A and B signal lines, while the 4-wire output uses separate +TX, -TX, +RX, and -RX differential pairs.
Can this converter maintain long-distance communication?
Yes. The converter uses differential signal transmission to ensure reliable long-distance communication while minimising the effects of electrical noise. This makes it suitable for industrial environments where devices may be separated by significant cable distances.
Is the LD-15UCR suitable for multi-device RS485 networks?
Absolutely. It supports RS485 multi-drop networks, allowing several devices to communicate efficiently over the same bus. The 2-wire RS485 input interface is specifically designed for this network topology, where multiple devices share a single communication line.
How is the LD-15UCR installed?
The converter is panel-mounted or integrated within system enclosures for secure installation and organised wiring, ensuring reliable operation. It is suited for installation inside industrial control panels, equipment racks, and system cabinets where a permanent, stable mounting position is required.
Which applications is the LD-15UCR best suited for?
The LD-15UCR is ideal for industrial automation, process monitoring, RS485 communication networks, data acquisition systems, and building management or facility automation applications. It is particularly useful wherever devices using different serial wiring formats need to communicate within the same network.
What is the difference between RS422 and RS485 (4-wire) on the output?
RS422 (4-wire) is commonly used for point-to-point connections where reliable data transmission over long distances is required. RS485 (4-wire) is used in systems where simultaneous data transmission and reception are necessary, often in multi-point configurations. The LD-15UCR supports both output formats, giving flexibility to match the requirements of the connected system.
Does the LD-15UCR require any configuration or driver software?
The LD-15UCR is a hardware signal converter that performs wiring format conversion at the physical layer. It does not require driver software or software configuration. Signal conversion takes place automatically once the input and output connections are properly made to the respective serial interfaces, making integration straightforward for system integrators.
