HDMI USB KVM IR Extender over Cat6 (1080P)

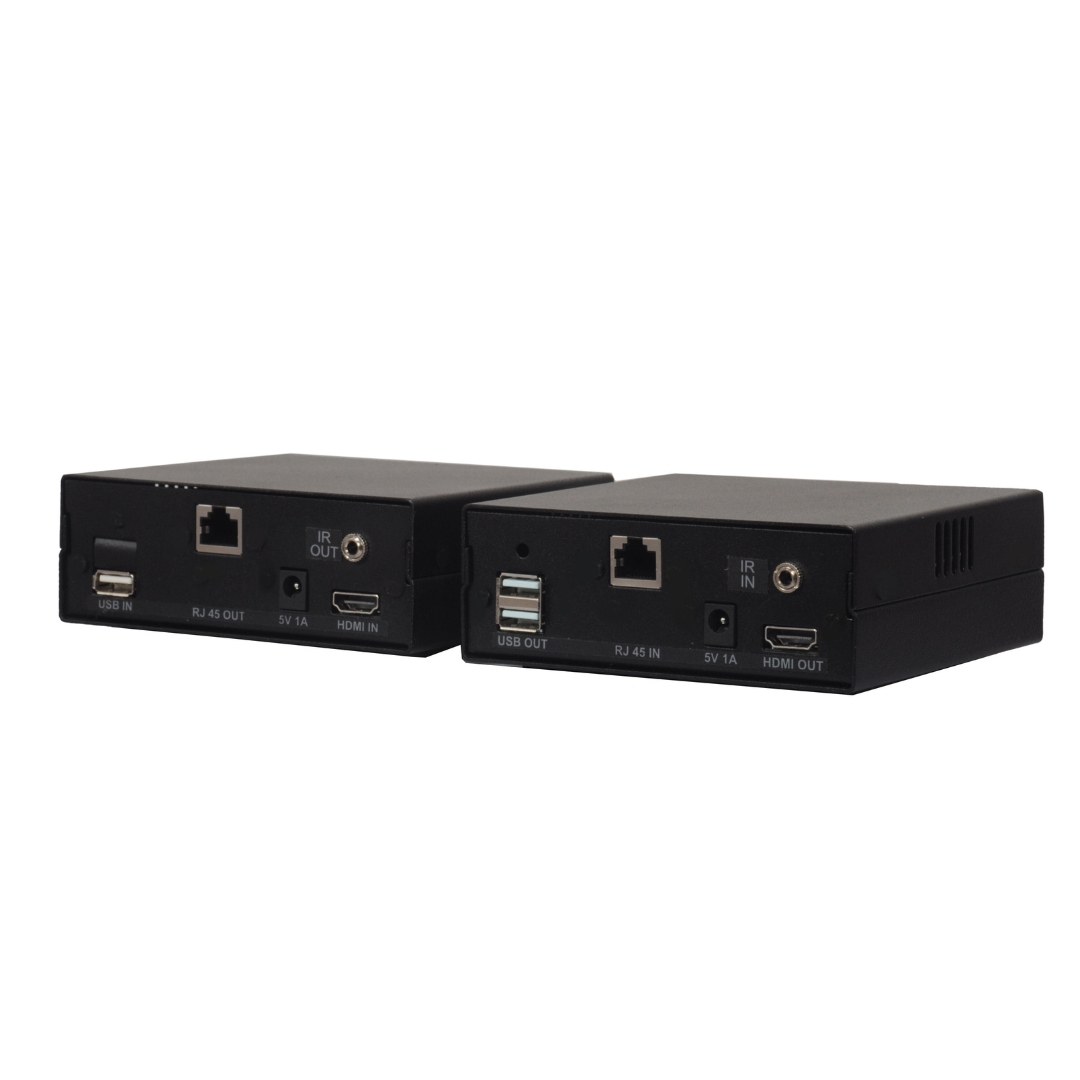

The ML-HUIKVMT / ML-HUIKVMR enables long-distance extension of HDMI video, USB keyboard and mouse control, and IR signals over a single Cat6 cable for centralised and remote workstation management.
- Extends HDMI, USB, and IR signals up to 120 metres over Cat6
- Supports 720P and 1080P Full HD video resolutions
- Remote keyboard and mouse control through USB at the receiver
- Point-to-point and point-to-multipoint deployment options
- Ideal for control rooms, IT infrastructure, and AV installations
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML-HUIKVMT / ML-HUIKVMR
The ML-HUIKVMT / ML-HUIKVMR extender transmits HDMI video signals along with USB keyboard and mouse data and IR control signals over a single Cat6 cable. By extending both video and control signals simultaneously, the system allows users to interact with computers or media systems located far from the workstation.

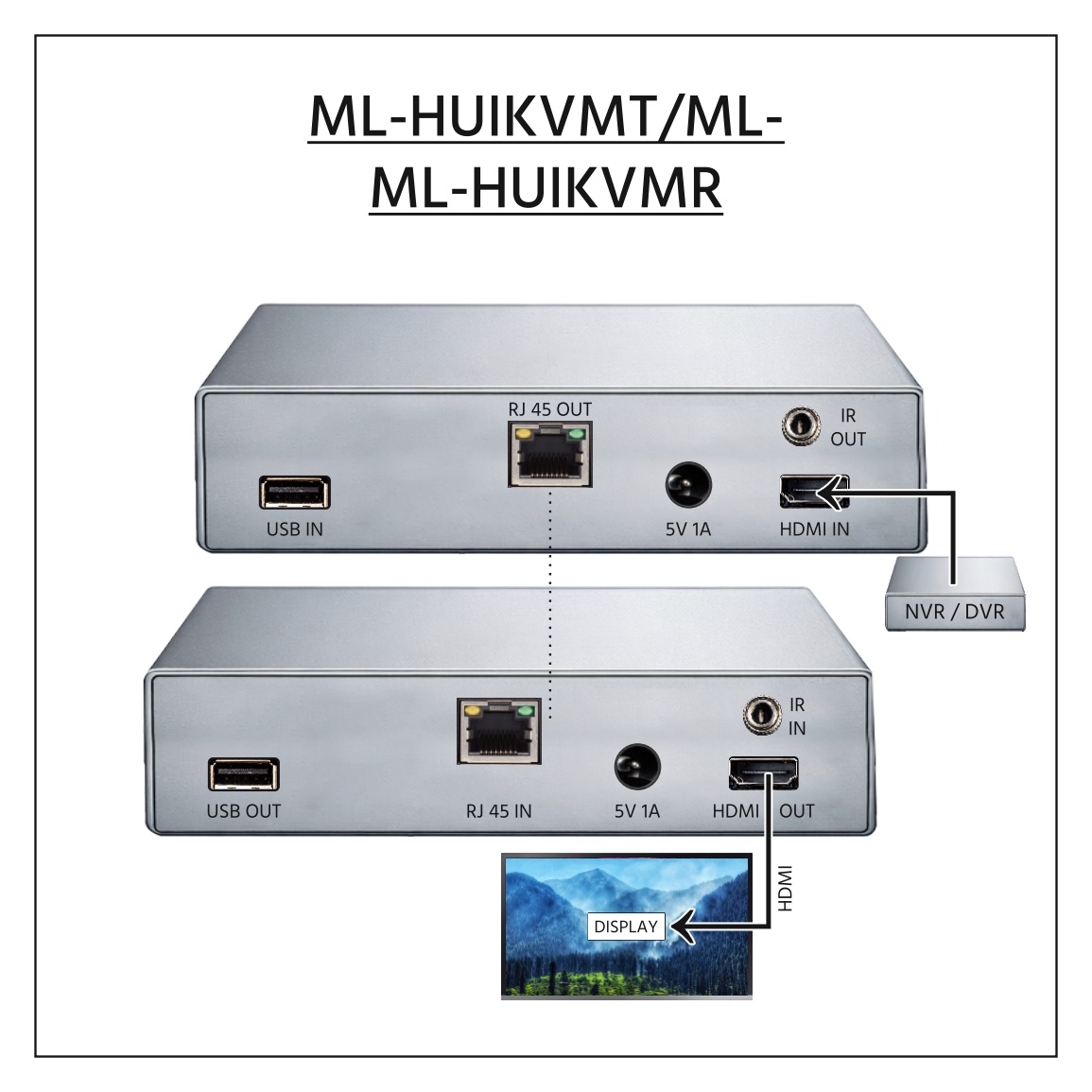

In a standard point-to-point configuration, the transmitter is connected to the source computer or HDMI device while the receiver is placed near the remote workstation display. The receiver includes two USB outputs that allow users to connect a keyboard and mouse for complete remote system control.
The system supports HDMI video resolutions up to 1080P Full HD, ensuring clear and stable video output even over extended cable distances. The use of Cat6 cabling also allows the system to integrate easily with existing structured network infrastructure in offices, campuses, and industrial installations.
For installations requiring multiple remote access points, the ML-HUIKVM supports point-to-multipoint deployment using a standard Ethernet switch — enabling a single transmitter to distribute signals to multiple receiver units across a facility.
Max Resolution
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
HDMI, USB, and IR over a single cable
Three signal types. One Cat6 cable. Full remote workstation control from up to 120 metres away.
Full HD 1080P Video Extension
The ML-HUIKVM supports HDMI video resolutions up to 1080P Full HD, ensuring high-quality video output suitable for professional workstations, monitoring displays, and multimedia applications. Compatible with a wide range of display devices including monitors, projectors, and commercial displays.
- 720P HD resolution
- 1080P Full HD resolution
- Standard HDMI video formats
120-Metre Cat6 Transmission
Using a single Cat6 cable, the extender transmits HDMI, USB, and IR signals up to 120 metres between the transmitter and receiver. This significantly exceeds the limitations of traditional HDMI cables and enables flexible deployment across large facilities without specialist cabling.
- Up to 120 metres over a single Cat6 cable
- Integrates with existing structured network infrastructure
- Suitable for offices, campuses, and industrial installations
KVM Remote Control
A key feature of the ML-HUIKVM is its ability to transmit USB keyboard and mouse signals along with HDMI video. This allows users to control a remote computer or media system as if they were directly connected to it, enabling centralised equipment management while maintaining user interaction at remote workstations.
- Two USB outputs on the receiver unit
- USB keyboard support
- USB mouse support
- Compatible with other USB input devices
IR Signal Extension
The ML-HUIKVM also supports IR signal transmission, allowing remote control commands to be sent between the transmitter and receiver units. This is particularly useful when source equipment such as media players or AV systems are installed in a central rack or equipment room while users operate the system from another location.
- IR commands transmitted alongside HDMI and USB signals
- Enables full device control from the remote workstation location
- Useful for AV equipment installed in closed racks or equipment rooms
Point-to-Multipoint Support
The ML-HUIKVM supports point-to-multipoint applications using a standard Ethernet switch. In this configuration, one transmitter can distribute signals to multiple receiver units connected through the network switch — ideal for monitoring environments or installations where multiple workstations need access to the same source system.
- Works with any standard Ethernet switch
- One transmitter serves multiple remote receivers
- Suitable for monitoring rooms and multi-operator environments
Simple Point-to-Point Configuration
For straightforward installations, the transmitter and receiver connect directly using a single Cat6 cable. This point-to-point setup requires no additional hardware, allowing HDMI, USB, and IR signals to be reliably transmitted up to 120 metres between the two units with minimal setup complexity.
- No additional switch or network hardware required
- Transmitter connects to source; receiver at remote display
- Up to 120 metres between TX and RX units
Installation
Point-to-point or point-to-multipoint
The ML-HUIKVMT / ML-HUIKVMR supports two installation architectures: a direct two-unit setup, or a networked multi-receiver configuration using a standard Ethernet switch.
01
Point-to-Point Configuration
Connect the transmitter to the source computer or HDMI device and run a single Cat6 cable to the receiver at the remote workstation location. This setup transmits HDMI, USB, and IR signals up to 120 metres without any additional hardware. Ideal for single-operator environments where one remote location requires access to one source system.
02

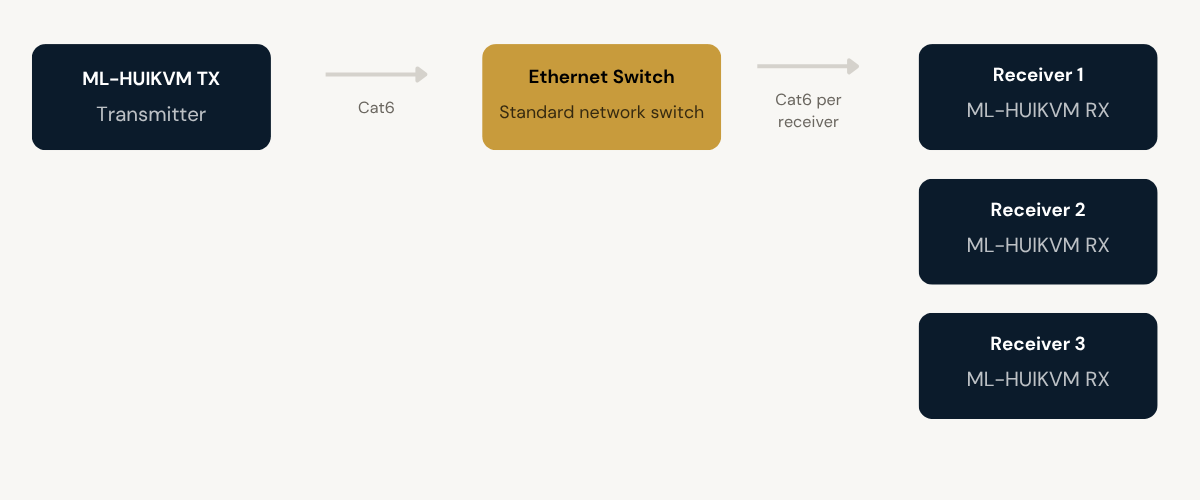

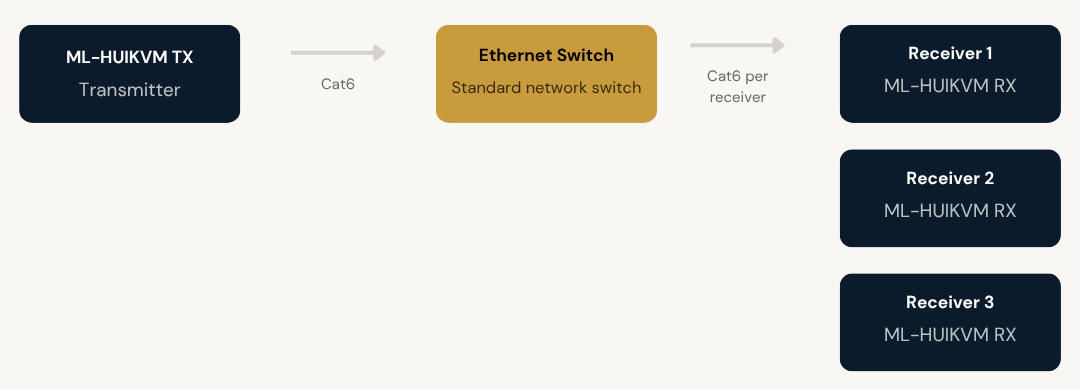

Point-to-Multipoint Distribution
For installations requiring multiple remote access points, the ML-HUIKVM can be deployed using a standard Ethernet switch. One transmitter distributes signals to multiple receivers connected through the switch. This configuration is well suited to monitoring environments and facilities where multiple operators need access to the same video feed or source system.
Where the ML-HUIKVMT / ML-HUIKVMR performs
Designed for professional environments where long-distance signal extension, remote keyboard and mouse control, and reliable IR transmission are required.
Control Rooms
Operate and monitor remote computer systems from a centralised workstation environment. The ML-HUIKVM allows operators to interact with source equipment installed in separate equipment rooms without requiring physical proximity.
Industrial and Manufacturing Facilities
Control computers located in secure, restricted, or hazardous areas while operating from a safe control location. The extender's 120-metre range allows equipment to be placed away from the operator station without sacrificing control.
Corporate IT Infrastructure
Enable remote management of servers or computer systems without requiring multiple physical workstations. Full keyboard, video, and mouse control is maintained at the operator location regardless of where the source equipment is physically installed.
Digital Signage and AV Systems
Control media players or presentation systems installed in centralised AV racks from remote display locations. IR extension enables remote control commands to be sent back to equipment housed in closed racks or cabinets.
Education and Presentation Rooms
Extend HDMI and control signals from a presentation computer to a remote display in lecture halls, training rooms, or boardrooms. A single Cat6 cable replaces long HDMI runs and enables keyboard and mouse control from the display location.
Broadcast and Media Environments
Use in broadcast studios or media production environments to extend HDMI video and control signals from production equipment to monitoring stations across the facility. Point-to-multipoint support allows a single source to feed multiple monitor positions.
Full specification sheet
- Video Specifications
- Signal Extension
- KVM and Control
- Deployment
- Suitable Environments
FAQs about the ML-HUIKVM
What signals can the ML-HUIKVMT / ML-HUIKVMR extend over Cat6?
It extends HDMI video, USB keyboard and mouse data, and IR control signals over a single Cat6 cable between the transmitter and receiver.
What is the maximum transmission distance supported?
The extender can transmit signals up to 120 metres using standard Cat6 cabling in a point-to-point setup.
Does the receiver allow connection of keyboard and mouse?
Yes. The receiver includes two USB ports where users can connect a keyboard and mouse to control the remote system. Other compatible USB input devices are also supported.
Can this system be used in a networked environment?
Yes. It supports point-to-multipoint deployment using a standard Ethernet switch to distribute signals to multiple receivers. This is particularly useful in monitoring environments where multiple workstations need access to the same source system or video feed.
Which video resolutions are supported by this extender?
The device supports HDMI video resolutions including 720P HD and 1080P Full HD for clear remote display output across a wide range of monitors and commercial displays.
What is the role of the IR extension in this system?
The IR extension allows remote control commands to be transmitted between the transmitter and receiver units. This is useful when source equipment such as media players or AV systems are installed in a central rack or equipment room, allowing users at the remote workstation location to send IR control commands back to those devices.
Does the system require any specialist cabling?
No. The ML-HUIKVM uses standard Cat6 cabling, which is commonly found in the existing structured network infrastructure of offices, campuses, and industrial facilities. This makes installation straightforward without the need for specialist or proprietary cabling.
