Milestone Electronics
4 Input 1 Output Video Switching System with Scan and Remote
The ML 401 Video Switcher connects up to four composite video sources to a single display or projector. It supports manual selection, IR remote control, RS232 integration, and an automatic scan mode for continuous multi-source monitoring.
- Supports up to 4 composite video inputs with 1 output for single display or projector
- Front panel keypad, IR remote control, and RS232 interface for flexible operation
- Scan mode automatically cycles through all connected inputs at configurable intervals
- Compatible with standard RCA video sources including cameras, DVRs, and media players
- Durable metal enclosure with LED indicators for channel and power status
Metal
Max Resolution
1080p Full HD
Audio Input
Stereo Analogue
Output
Single HDMI
- In-house manufactured
- 24hr response
- 2,000+ clients served
Product Overview
What makes the ML 401
The ML 401 Video Switcher features four composite video input ports and one composite video output port, enabling users to select and display video from different sources on a single screen. It eliminates the need to physically reconnect cables when switching between devices, simplifying AV management in professional setups.
Multiple control methods are supported, including a front panel keypad for direct channel selection, an IR remote for wireless operation, and an RS232 interface for integration into automated AV systems. Optional RS422/RS485 support extends compatibility with a wider range of system control architectures.
The built-in scan mode automatically cycles through all connected input channels at preset time intervals, making it suitable for continuous monitoring of multiple video feeds without requiring manual switching. LED indicators on the front panel display the currently active channel and power status at all times.
The device is housed in a durable metal enclosure designed for long-term reliability in professional AV environments. Its compact tabletop form factor allows installation on AV racks, control desks, or equipment setups. A 230V AC power supply is provided as standard.
Video Inputs
Need a quote?
Our team responds within 24 hours with a tailored quote for your project or bulk order.
Key Features
Built for reliable multi-source video management
Four composite inputs. One clean output. Multiple control methods for manual and automated video switching.
4x1 Composite Video Switching
The ML 401 accepts up to four composite video inputs and routes the selected source to a single output connected to a monitor or projector. Centralized control of multiple video signals removes the need for manual cable reconnection.
- 4 composite video inputs
- 1 composite video output
- Compatible with standard RCA video sources
- Supports cameras, DVRs, and media players
Flexible Control Options
The switcher supports three independent control methods, allowing it to be operated manually at the device or integrated into automated AV control systems. Optional RS422/RS485 support broadens system compatibility further.
- Front panel keypad for direct manual selection
- Built-in IR remote for wireless channel switching
- RS232 interface for system integration
- Optional RS422/RS485 support
Manual and Scan Operation Modes
Two operating modes are available. In manual mode, the desired channel is selected directly using the keypad or IR remote. In scan mode, the device cycles through all connected inputs automatically at configurable time intervals, with LED indicators showing current scan status.
- Manual mode for direct, precise channel selection
- Scan mode for automatic cycling through all inputs
- Adjustable scan timing per channel
- LED indicators display active channel and scan status
Stable Signal Transmission and Durable Build
The device ensures stable composite video signal transmission with smooth switching and no distortion or delay. A metal enclosure provides long-term mechanical protection, and the compact tabletop design allows easy installation in AV racks or control desks.
- Stable output with no signal distortion or delay
- Durable metal enclosure for long-term reliability
- Compact tabletop design for flexible installation
- 230V AC power supply included
Installation
Plug-and-play setup or integrated system control
The ML 401 is designed for straightforward installation and requires no complex configuration. It operates as a standalone unit or as part of a larger AV control system via RS232.
01
Standalone Plug-and-Play Setup

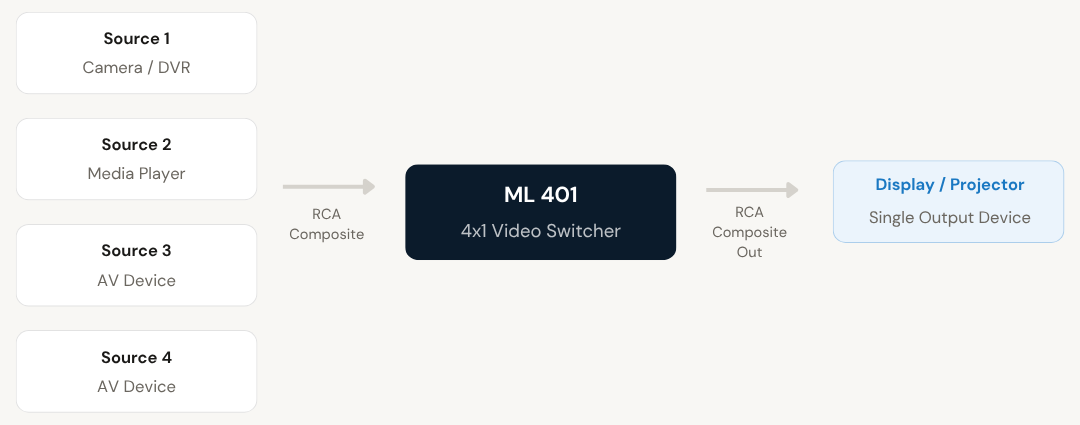

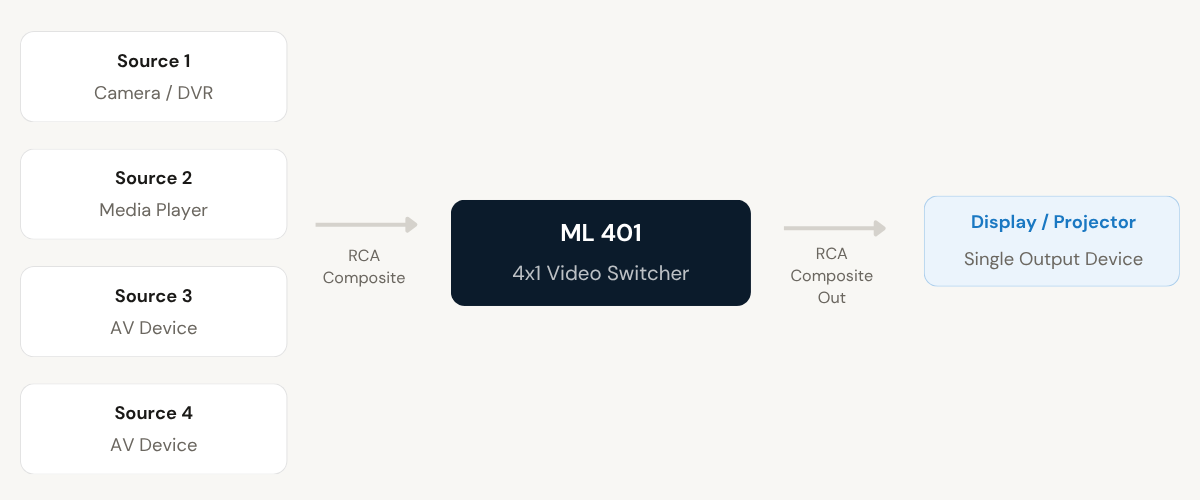

Connect up to four composite video sources to the input ports using standard RCA cables, then connect the output to a monitor or projector. Power the device using the 230V AC supply. No drivers or configuration are required. Use the front panel keypad or IR remote to begin switching between sources immediately.
02
AV System Integration via RS232
For integration into a larger AV control system, the ML 401 connects to a control processor or automation system via the RS232 interface. Optional RS422/RS485 support enables compatibility with additional control architectures. Once integrated, input selection and scan mode can be managed centrally alongside other AV devices.
Where the ML-104HDMI-4K is deployed
Designed for professional environments that require synchronized multi-display output from a single source.
Control Rooms
Switch between multiple video sources feeding a single display in monitoring and operations environments. Scan mode enables continuous cycling through all connected feeds without operator intervention.
CCTV and Surveillance
View multiple camera feeds on a single display without disconnecting cables. The scan mode automatically rotates between connected cameras, supporting effective surveillance monitoring with a single output device.
Conference and AV Presentations
Manage multiple video sources in conference rooms and presentation setups. Quickly switch between laptops, media players, or other AV devices connected to a single projector or display using the front panel or IR remote.
Broadcast and Media Environments
Route composite video signals from cameras, DVRs, or media players to a single output in broadcast preparation or media playback setups. RS232 integration supports use within automated production control workflows.
Commercial Installations
Deploy in retail outlets, lobbies, or hospitality environments where multiple video sources need to be displayed on a single screen in sequence or on demand. The compact metal enclosure suits rack or desk-mounted installations.
Training and Education Facilities
Switch between video sources such as presentation systems, video players, and cameras during training sessions. A single display can serve multiple input devices, reducing the need for additional screens or equipment.
Full specification sheet
- Video Specifications
- Control and Operation
- Operating Modes
- Physical and Power
- Suitable Environments
FAQs about the ML 401
What does the ML 401 Video Switcher do?
The ML 401 Video Switcher allows you to connect up to 4 video sources and display them on a single screen. It makes switching between different inputs easy without needing to unplug and reconnect cables.
What type of devices can I connect to this video switcher?
You can connect devices like CCTV cameras, DVRs, media players, and other composite video sources. It works with standard RCA connections, making it compatible with most basic AV setups.
How do I switch between different video inputs?
You can switch inputs using the front panel buttons, the included IR remote, or through RS232 integration. This gives you flexibility whether you’re using it manually or as part of a larger system.
What is scan mode and how is it useful?
Scan mode automatically cycles through all connected inputs at set intervals. It is especially helpful for monitoring multiple video feeds without needing to switch manually.
Is the ML 401 Video Switcher suitable for continuous use?
Yes, it is built with a durable metal body and designed for stable performance. It ensures smooth switching and consistent output, making it reliable for everyday use in AV setups.
Can the scan timing be adjusted for each input channel?
Yes. The scan duration is configurable, allowing you to set how long the device displays each input before moving to the next channel. This makes it adaptable to different monitoring requirements where some sources may need to be displayed for longer periods than others.
Can the ML 401 be integrated into an existing AV control system?
Yes. The RS232 interface allows the ML 401 to be connected to a control processor or AV automation system for centralised control of input selection and operating modes. Optional RS422 and RS485 support further expands compatibility with different control system architectures used in professional AV environments.
